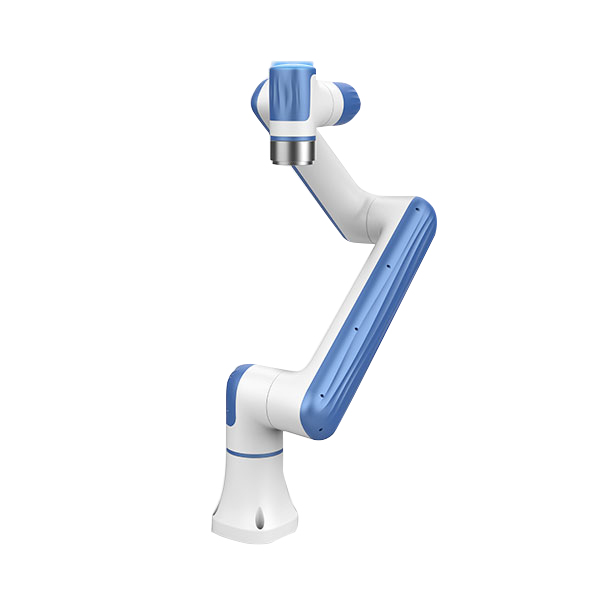

Dobot Nova 5
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
2 m/s (78.7 in/s)
Maximum Speed Of TCP
18 kg
Net weight
200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2 in)
Dimensions
5 kg (11 lbs)
Maximum Payload
Typical | 230W
Power Consumption
All Specifications
BrandDobot
CategoryRobotic Arm
AvailabilityBackorder
Net weight18 kg
Weight14 kg (30.9 lbs)
Working Radius850 mm (33.5 in)
J2± 180°
J3± 160°
J4± 360°
J5± 360°
J6± 360°
J4/J5/J6100 ° /s
End IODI | 2 inputs
DO2 output
RS485Supported
IP RatingIP54
Noise70 dB(A)
Temperature Range0° to 50° C
Installation OrientationAny angle
Maximum770W
Cable Length From Robot To Controller3 m (118.1 in)
MaterialsAluminum alloy, acrylonitrile butadiene Styrene plastic
Dimensions200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2 in)
IO InterfaceDI | 8 inputs（NPN or PNP）
AI2 inputs, voltage mode, 0~10V
AO2 outputs, voltage mode, 0~10V
USB2, for connecting USB wireless module
485 Interface1, for RS485 and Modbus RTU communication
EnvironmentTemperature | 0° to 50° C
Humidity≤95%, non-condensation
Cooling ModePassive heat dissipation
Teaching ModePC、APP（Android、iOS）
Maximum Payload5 kg (11 lbs)
Maximum Speed Of TCP2 m/s (78.7 in/s)
Repeatability±0.05 mm
Maximum Joint SpeedJ1/J2/J3 | 100 ° /s
Power ConsumptionTypical | 230W
Input Power30~60V DC
IO Power24V, Max 2A, Max 0.5A for each channel
Remote Power On/OffSupported
Communication InterfaceNetwork Interface | 2, for TCP/IP and Modbus TCP communication
Range Of MotionJ1 | ± 360°
