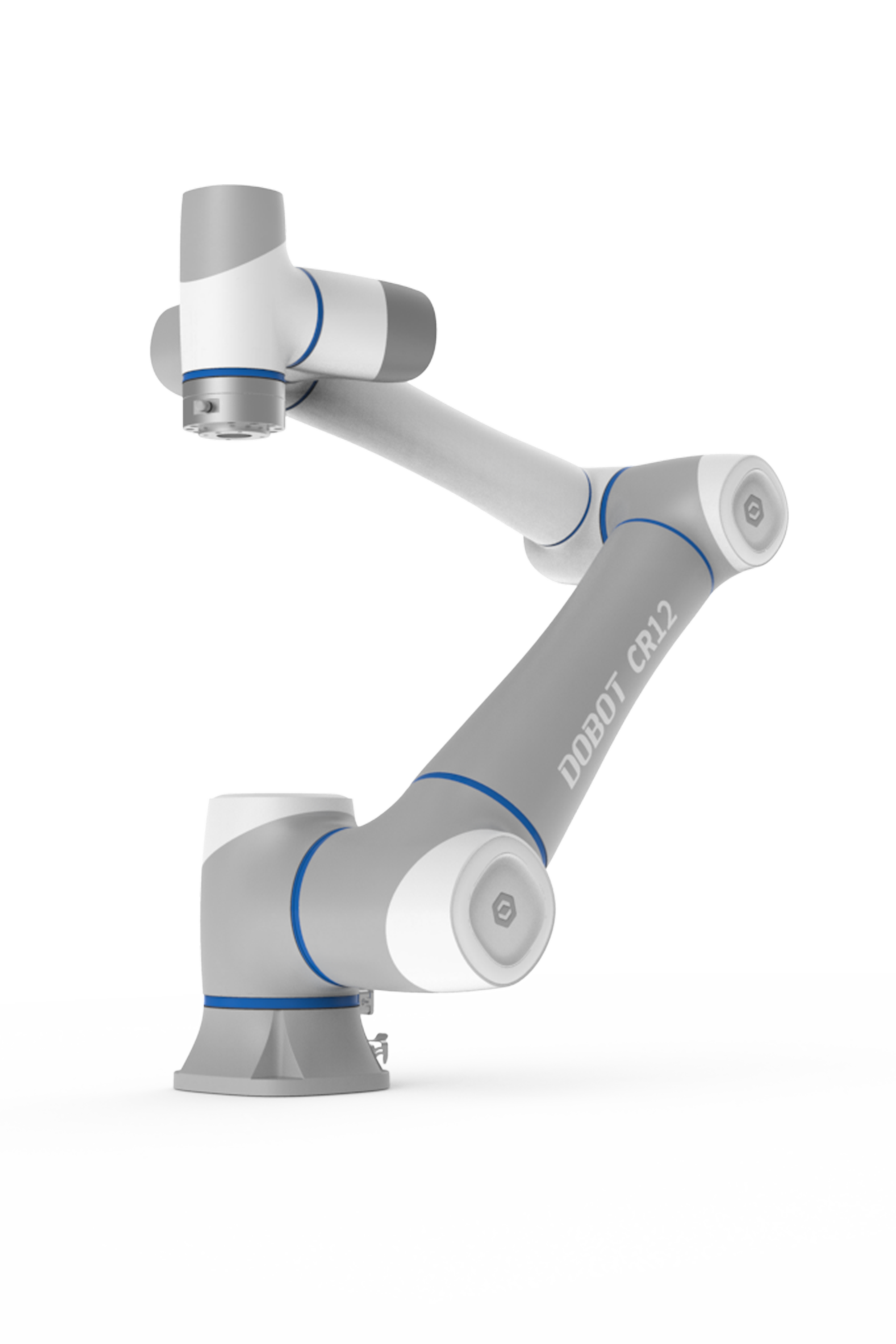

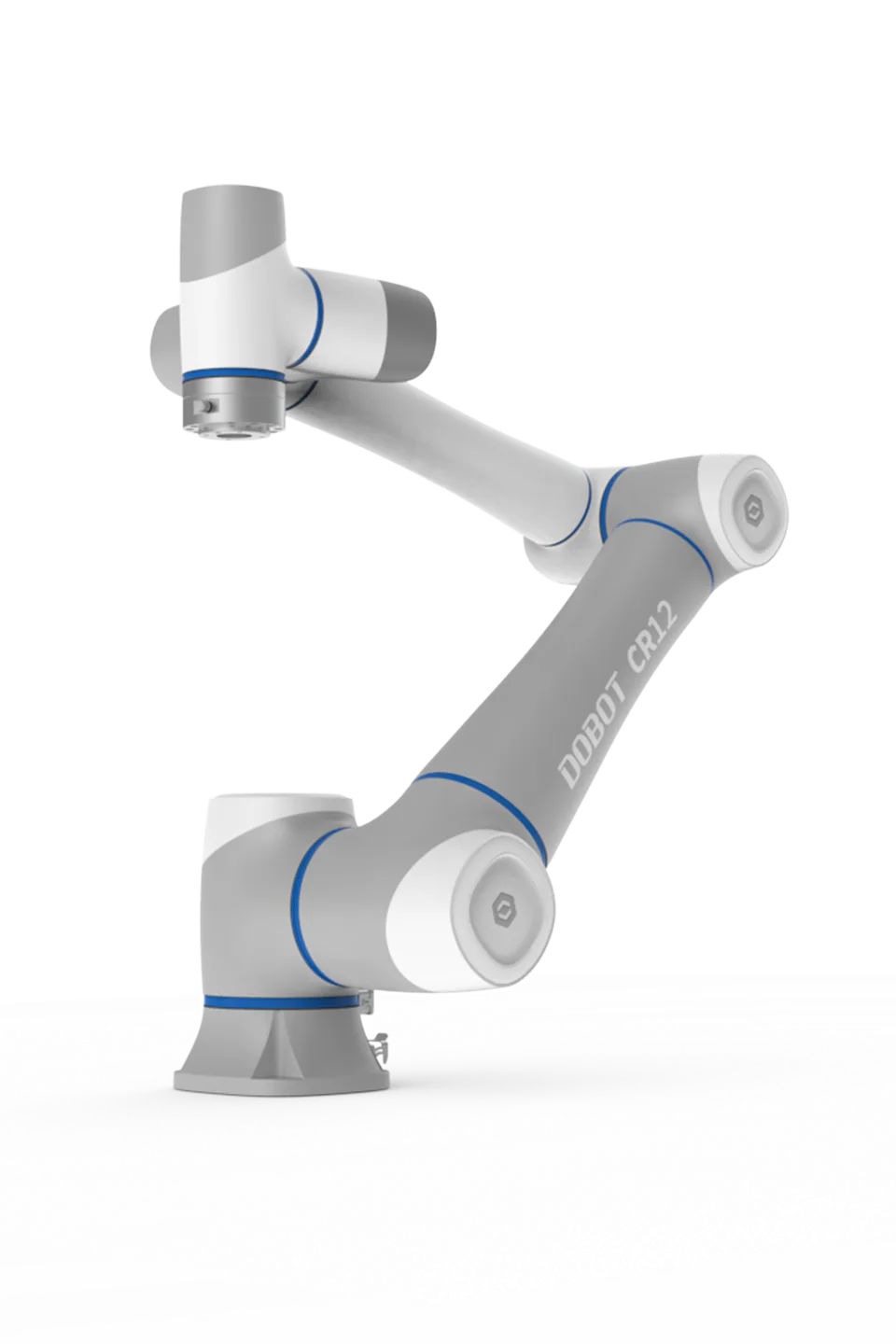

DOBOT CR12

12 kg payload collaborative robot with 1425 mm reach and ±0.03 mm repeatability. 6-DOF, IP54 rated, 39.5 kg. High-payload cobot suited for welding, assembly, and logistics.

DOBOT CR12

Contact us for pricing and availability.

Request a Quote

DOBOT authorized partner · contact@roboticscenter.ai

Technical Specifications

DOBOT CR12 Specs

Payload12 kg
Reach1425 mm
Working Radius1200 mm
Repeatability±0.03 mm
Weight39.5 kg
Degrees of Freedom6
Max TCP Speed4 m/s
Power Consumption350 W
IP RatingIP54 (arm) / IP20 (control box)
Rated VoltageDC48V
CommunicationTCP/IP, Modbus, Wi-Fi, RS485
Operating Temperature0–45°C
