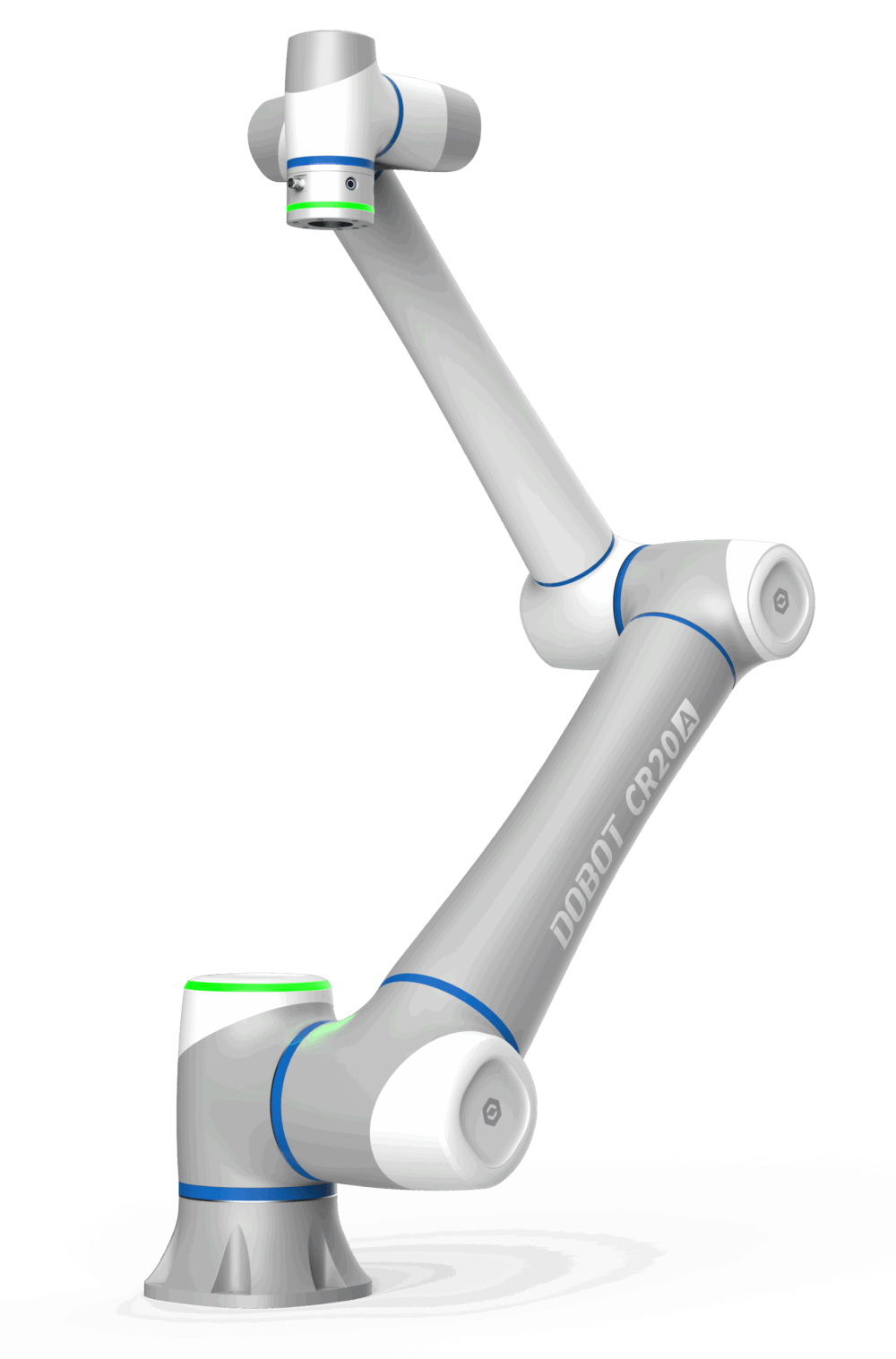

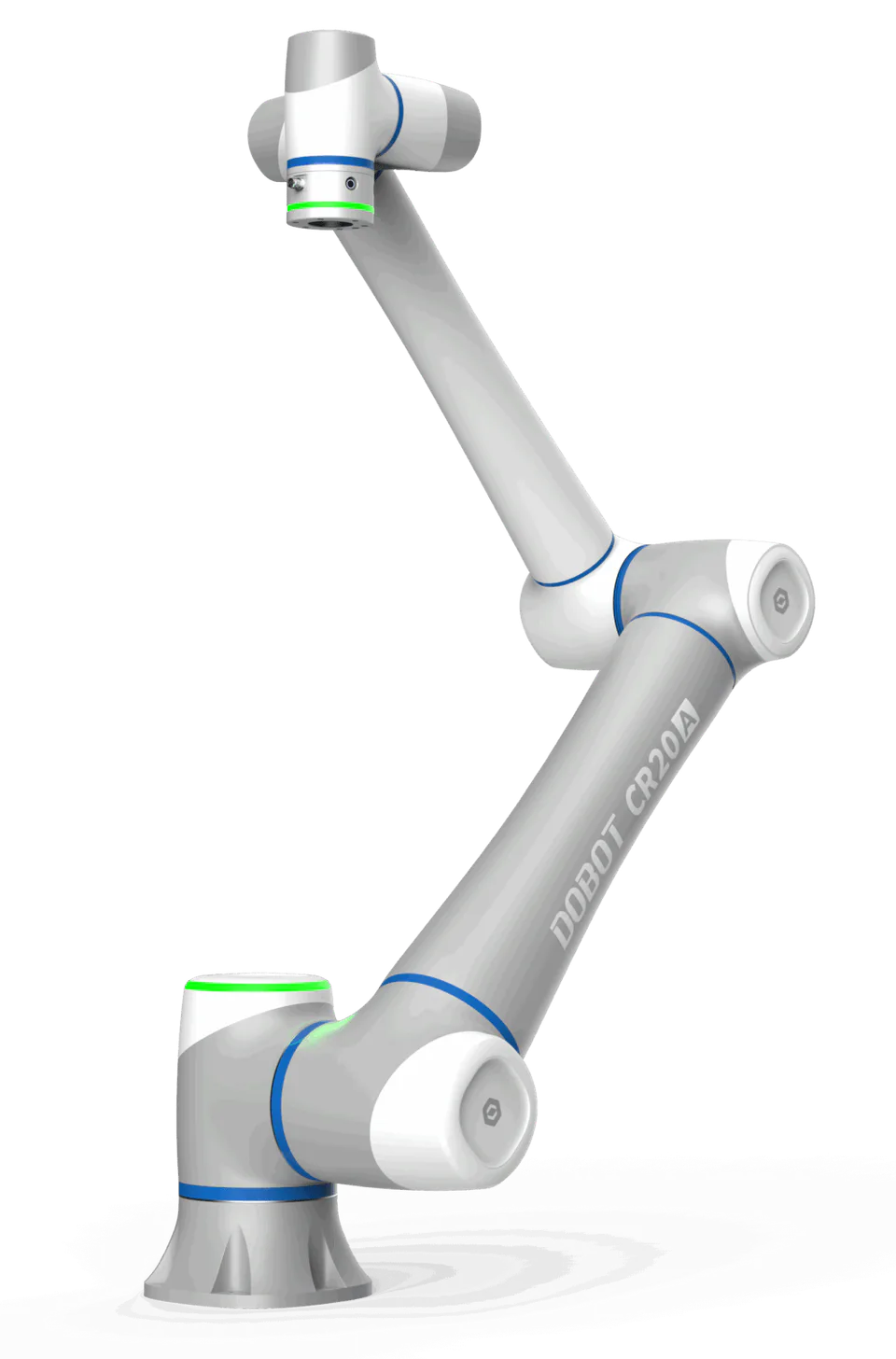

Dobot CR20A
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
2,000 mm/s
Maximum Speed Of TCP
18 kg
Net weight
20 kg
Maximum Payload
All Specifications
BrandDobot
CategoryRobotic Arm
AvailabilityBackorder
Net weight18 kg
Weight73 kg
Working Radius1,700 mm
J3150° /s
J4 ～ J6180° /s
I/O PortsPower | 24V, Rated 2A, Max 3A
Ports2 connectors, RS485/AI, 2 x DO, 2 x DI
IP RatingIP54
Noise≤ 70 dB
Working Environment0° ～ 50° C
Installation OrientationUpright
Cable Length To Controller6 m
MaterialsCarbon steel, aluminum alloy, ABS plastic
Maximum Payload20 kg
Maximum Speed Of TCP2,000 mm/s
Maximum Joint SpeedJ1 ～ J2 | 120° /s
Repeatability±0.05 mm
Range Of MotionJ1/J2/J4/J5/J6 | ±360°
