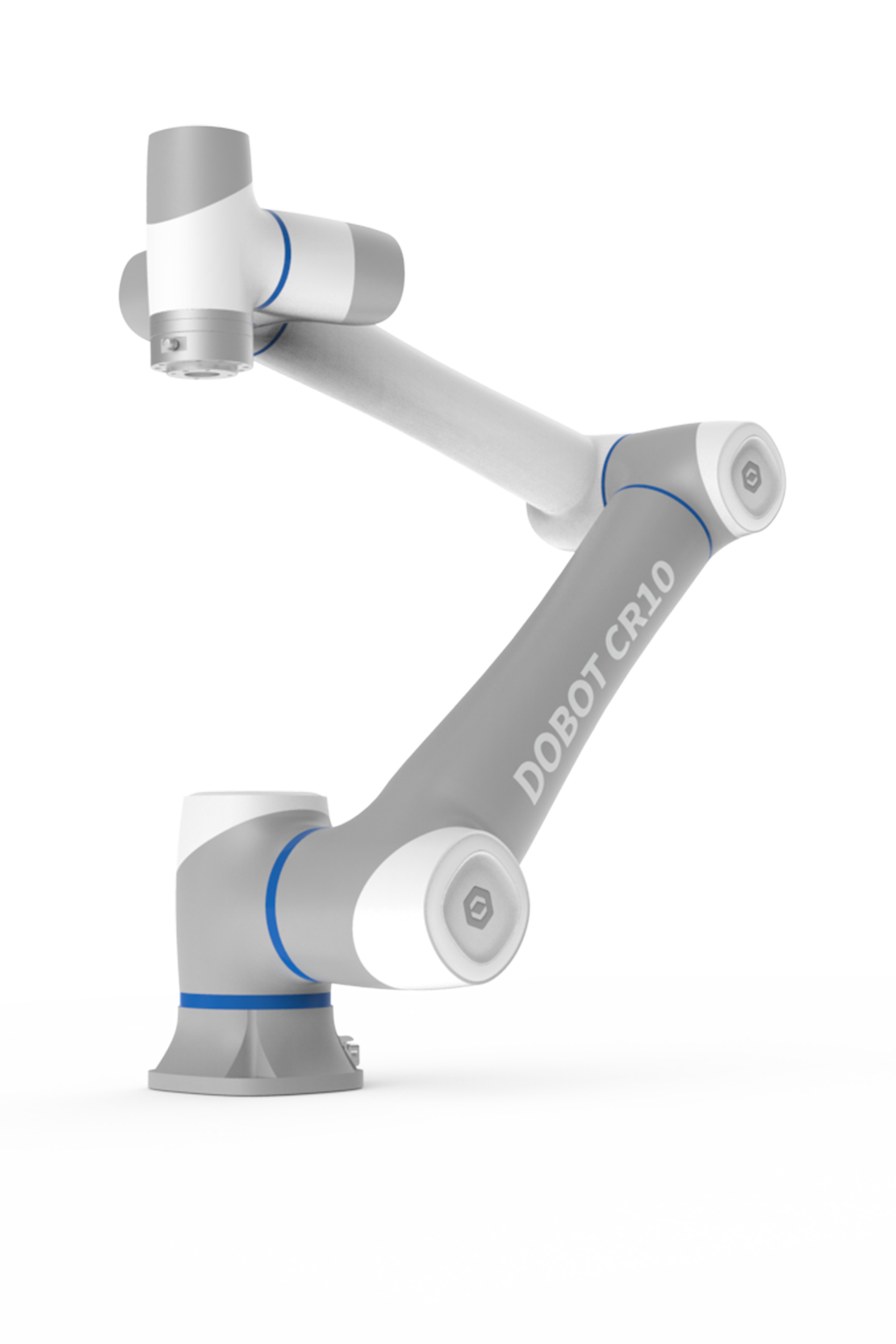

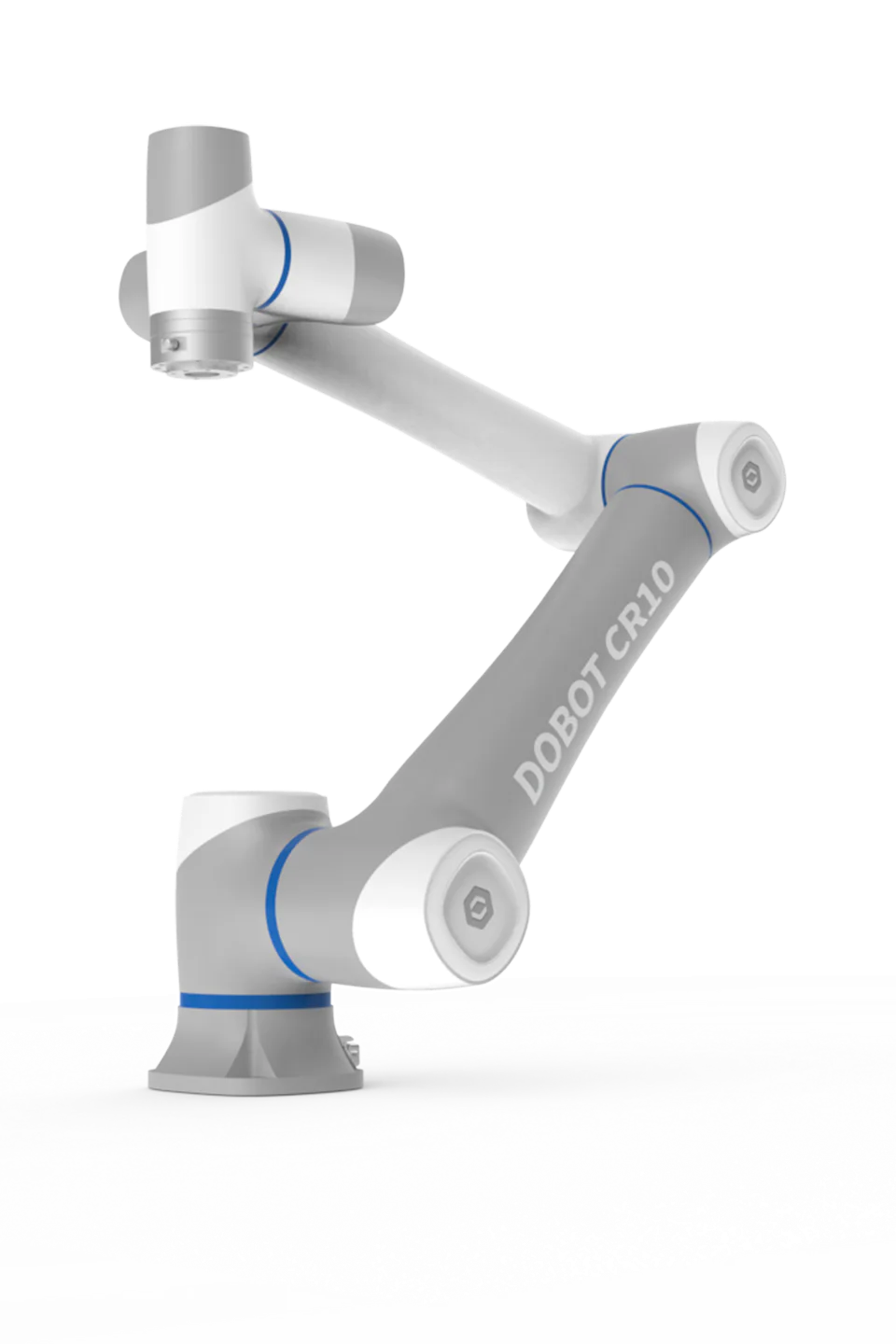

DOBOT CR10

High-reach 10 kg payload collaborative robot with 1525 mm reach and ±0.03 mm repeatability. 6-DOF, IP54 rated, 40 kg. Ideal for palletizing, unpacking, and heavy material handling.

DOBOT CR10

Contact us for pricing and availability.

Request a Quote

DOBOT authorized partner · contact@roboticscenter.ai

Technical Specifications

DOBOT CR10 Specs

Payload10 kg
Reach1525 mm
Working Radius1300 mm
Repeatability±0.03 mm
Weight40 kg
Degrees of Freedom6
Max TCP Speed4 m/s
Power Consumption350 W
IP RatingIP54 (arm) / IP20 (control box)
Rated VoltageDC48V
CommunicationTCP/IP, Modbus, Wi-Fi
Operating Temperature0–45°C
