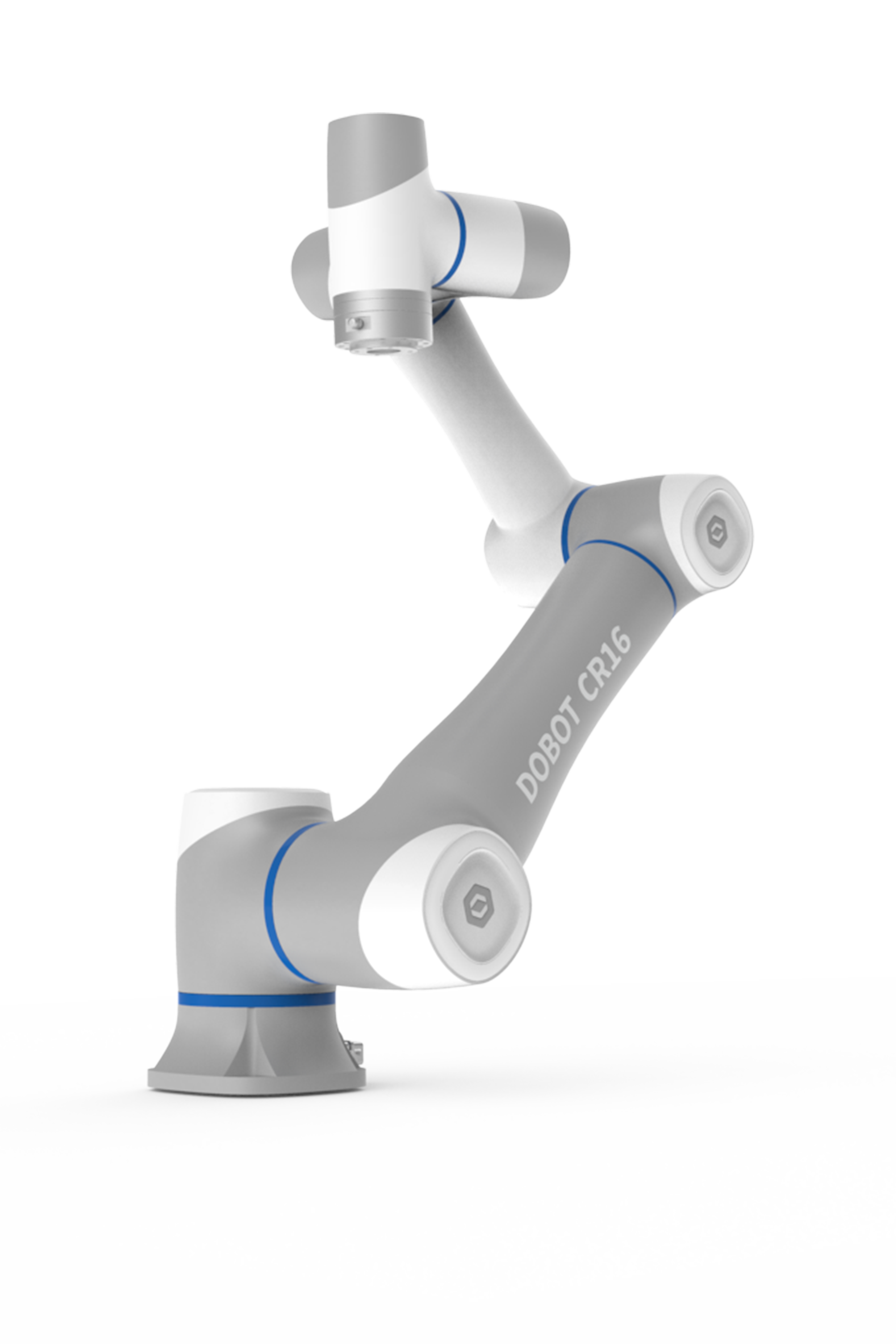

DOBOT CR16

Heavy-duty 16 kg payload collaborative robot with 1223 mm reach and ±0.03 mm repeatability. 6-DOF, IP54, 40 kg body weight. Designed for demanding industrial tasks requiring high force capacity.

DOBOT CR16

Contact us for pricing and availability.

Request a Quote

DOBOT authorized partner · contact@roboticscenter.ai

Technical Specifications

DOBOT CR16 Specs

Payload16 kg
Reach1223 mm
Working Radius1000 mm
Repeatability±0.03 mm
Weight40 kg
Degrees of Freedom6
Max TCP Speed3 m/s
Power Consumption350 W
IP RatingIP54 (arm) / IP20 (control box)
Rated VoltageDC48V
CommunicationTCP/IP, Modbus, Wi-Fi, RS485
Operating Temperature0–45°C
