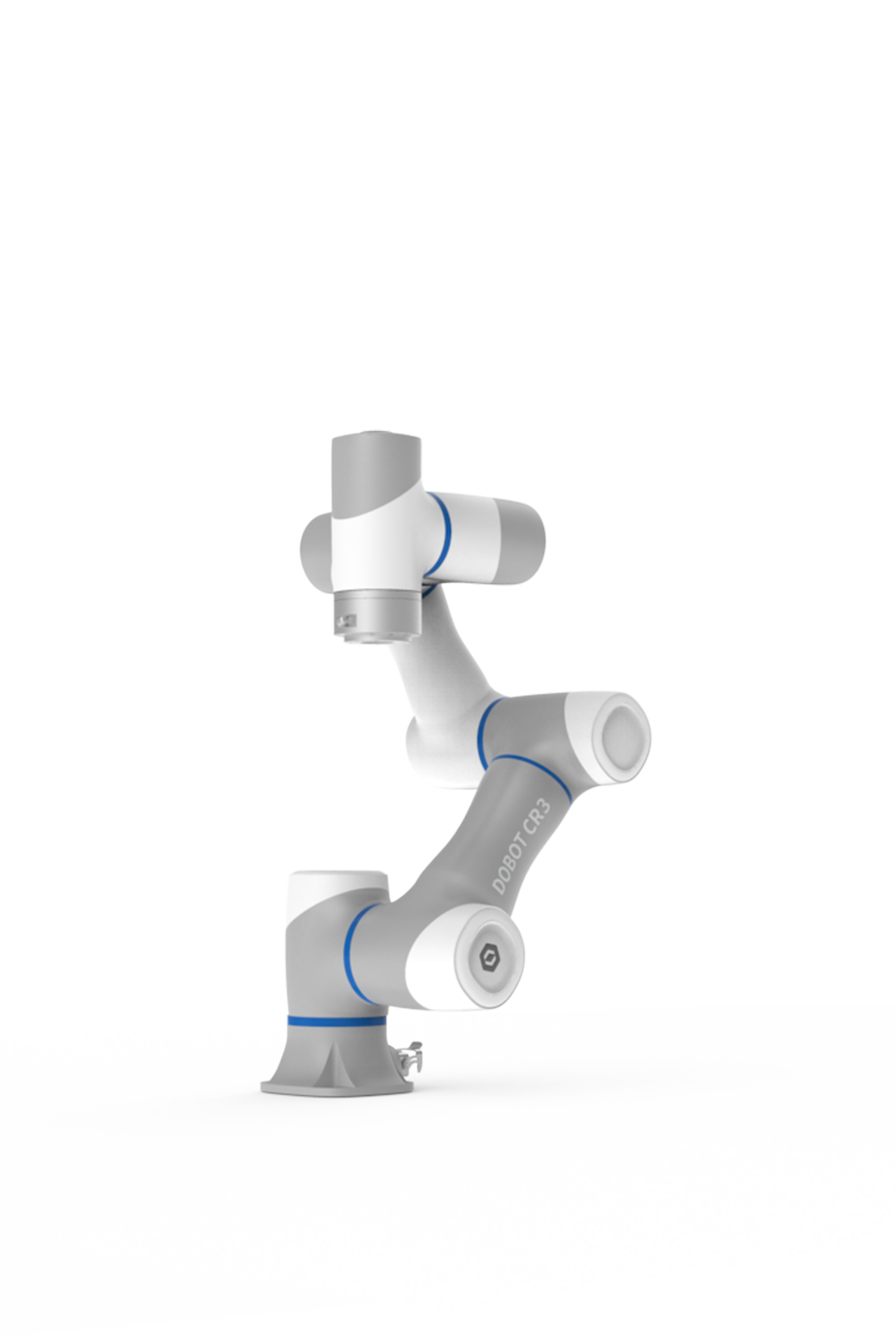

DOBOT CR3

Compact 3 kg payload collaborative robot arm with 795 mm reach and ±0.02 mm repeatability. 6-DOF, IP54 rated, 16.5 kg body weight. Ideal for light assembly, inspection, and lab automation.

DOBOT CR3

Contact us for pricing and availability.

Request a Quote

DOBOT authorized partner · contact@roboticscenter.ai

Technical Specifications

DOBOT CR3 Specs

Payload3 kg
Reach795 mm
Repeatability±0.02 mm
Weight16.5 kg
Degrees of Freedom6
Max TCP Speed2 m/s
Power Consumption120 W
IP RatingIP54 (arm) / IP20 (control box)
Rated VoltageDC48V
CommunicationTCP/IP, Modbus, Wi-Fi
Operating Temperature0–45°C
