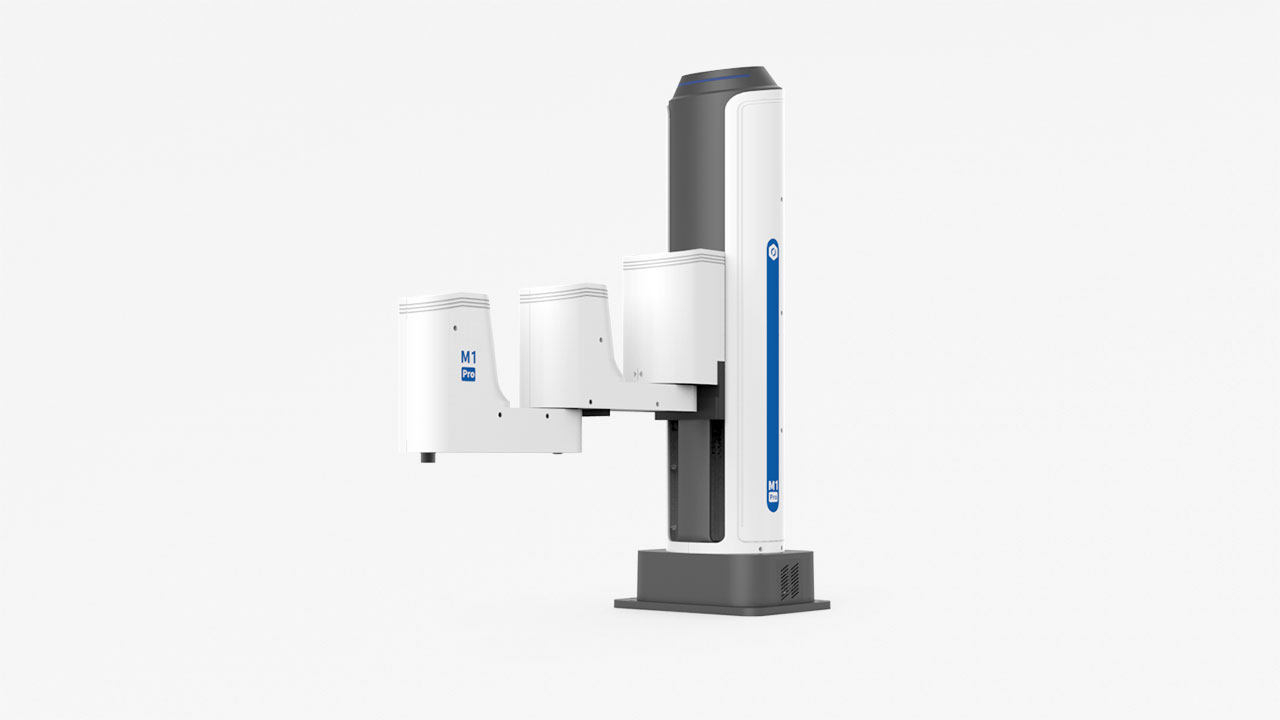

DOBOT M1 Pro

Portable 4-axis SCARA robot for small and medium factories. 1.5 kg payload, 400 mm reach, ±0.02 mm repeatability, 15.7 kg. High-speed wrist at 1000°/s. TCP/IP, Modbus TCP, Modbus RTU communication.

DOBOT M1 Pro

Contact us for pricing and availability.

Request a Quote

DOBOT authorized partner · contact@roboticscenter.ai

Technical Specifications

DOBOT M1 Pro Specs

Payload1.5 kg
Reach400 mm
Repeatability±0.02 mm
Weight15.7 kg
Degrees of Freedom4 (SCARA)
Max Joint Speed J1/J2180°/s
Max Wrist Speed J41000°/s
Vertical Stroke J35–245 mm
CommunicationTCP/IP, Modbus TCP, Modbus RTU
Input Voltage100–240V AC, 50/60 Hz
