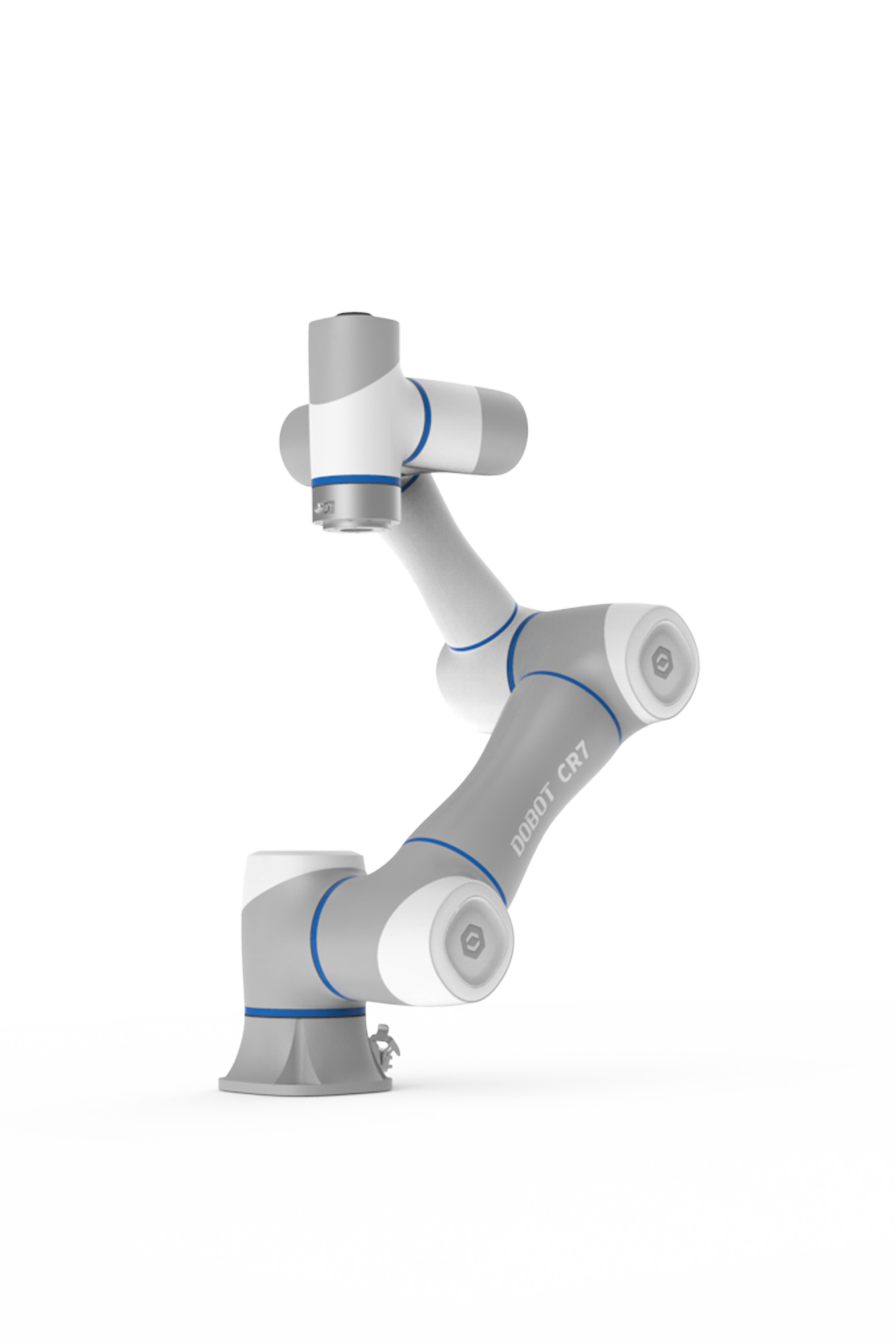

DOBOT CR7

Mid-range 7 kg payload collaborative robot with 990 mm reach and ±0.02 mm repeatability. 6-DOF, IP54 rated, 24.5 kg body weight. Suited for assembly, machine tending, and palletizing tasks.

DOBOT CR7

Contact us for pricing and availability.

Request a Quote

DOBOT authorized partner · contact@roboticscenter.ai

Technical Specifications

DOBOT CR7 Specs

Payload7 kg
Reach990 mm
Working Radius800 mm
Repeatability±0.02 mm
Weight24.5 kg
Degrees of Freedom6
Max TCP Speed3 m/s
Power Consumption150 W
IP RatingIP54 (arm) / IP20 (control box)
Rated VoltageDC48V
CommunicationTCP/IP, Modbus, Wi-Fi, RS485
Operating Temperature0–45°C
