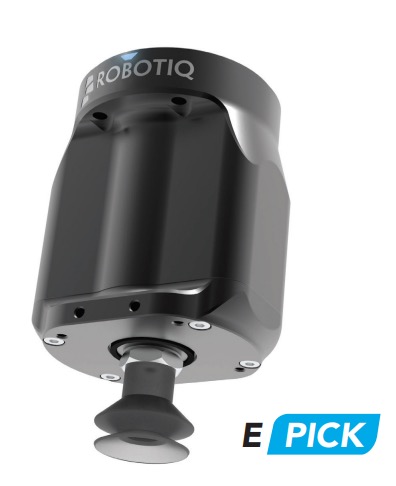

Robotiq EPick Vacuum Gripper

Robotiq EPick electric vacuum gripper — no compressor needed. Configurable 1–4 suction cup layout, integrated pump, object detection and grasp monitoring. For pick-and-place of flat, non-porous parts. Plug-and-play with Universal Robots. Contact for pricing.

Robotiq EPick Vacuum Gripper

Contact us for pricing and availability.

Request a Quote

Robotiq authorized distributor · contact@roboticscenter.ai

Technical Specifications

Robotiq EPick Vacuum Gripper Specs

Grip TypeElectric vacuum (no compressor required)
Suction Cups1 or 4 configurable suction cups
PayloadUp to 4.4kg (per cup, depends on object/surface)
VacuumElectric pump integrated, 70% max vacuum
Cup DiameterVarious (optional)
Weight0.87kg (base unit)
IP RatingIP54
CommunicationModbus RTU, USB, TCP/IP
Power24VDC, 22W max
Object DetectionYes — vacuum leak detection
UR+ CertifiedYes
CertificationsCE
ApplicationsFlat non-porous surfaces, carton/box handling, electronics, packaging
