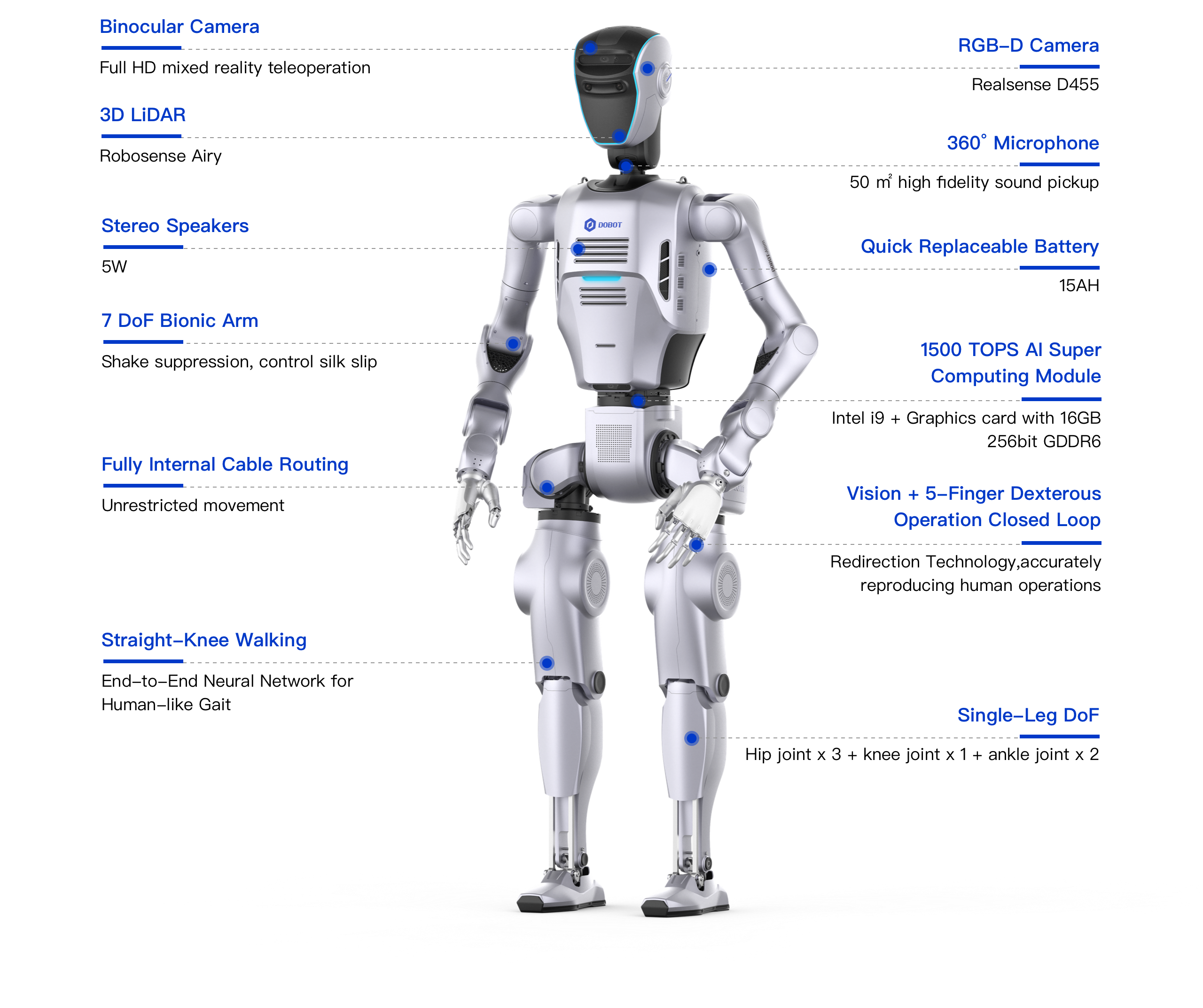

Dobot Atom Max
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
60 kg
Net weight
3.5kg
Arm Payload (Rated)
41 (29 body + 12 hands)
Total DOF
15Ah, 2h life, ≈1h charge
Battery
All Specifications
BrandDobot
CategoryHumanoid Robot
AvailabilityBackorder
Net weight60 kg
Height≈1,650mm
Weight≈58kg
AI Compute1500 TOPS (Intel i9 + 16GB 256-bit GDDR6)
Head SensorsRealSense D455 + Full HD Binocular Camera
Li DARRobosense Airy 3D LiDAR
Audio360° microphone + 2× 5W speakers
Warranty1 Year
End Effectors6-DOF dexterous hands × 2
Wrist SensorsRGB-D Camera × 2
Waist SensorsRGB-D Camera × 2
Total DOF41 (29 body + 12 hands)
Arm DOF7 per arm
Arm Payload (Rated)3.5kg
Arm Payload (Max)5kg
Arm Repeatability±0.05mm
Max Arm Speed1.5 m/s
Walking Speed1.5 m/s
Arm Payload (Rated / Max)3.5 kg / 5 kg
Battery15Ah, 2h life, ≈1h charge
