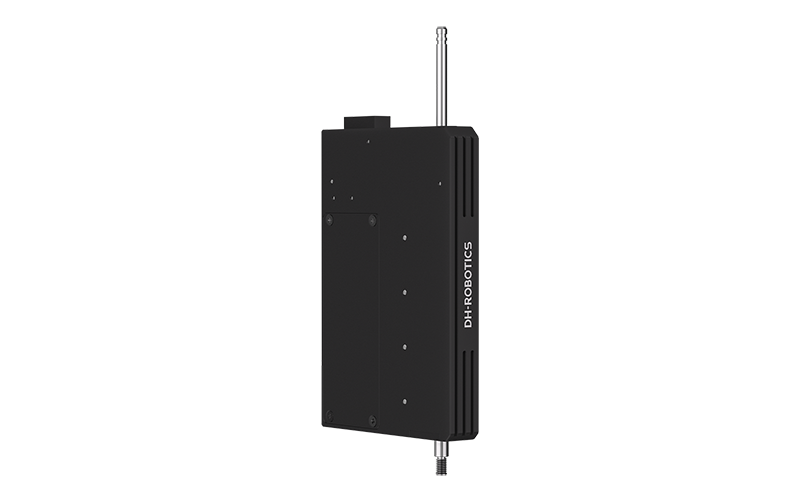

DH Robotics VLA Series

High-precision linear voice coil actuator for semiconductor and precision assembly. Soft landing capability, ±3 g force repeatability, billion-cycle service life.

DH Robotics VLA Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics VLA Series Specs

ModelsVLA-10-20, VLA-16-15, VLA-25-25, VLA-30-25
Peak Force4-30 N
Continuous Force1.8-16 N
Stroke15-25 mm
Linear Resolution1 μm (magnetic) / 0.5 μm (optical)
Positional Repeatability±2-5 μm
Force Repeatability±3 g
Frequency Response30 Hz+ (no load)
Weight130-860 g
IP RatingIP40
Voltage24V DC ±10% (48V option on VLA-30)
Service LifeBillion-cycle
CertificationsCE, FCC, RoHS
