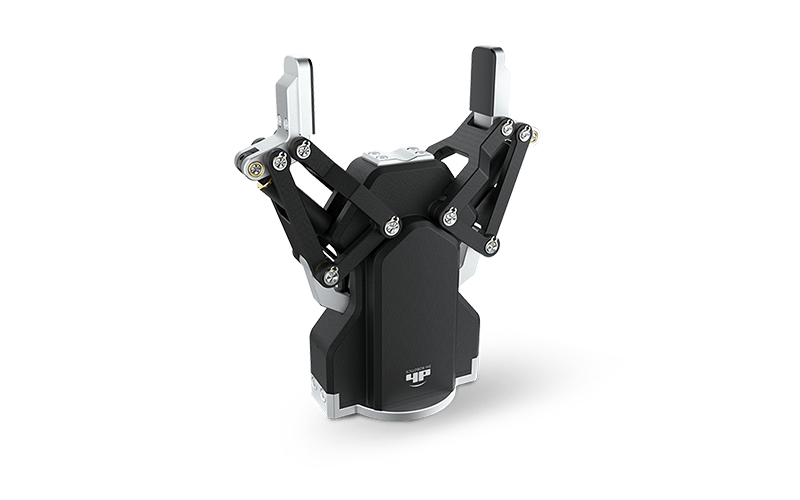

DH Robotics AG-95
DH-Robotics (Dahuan)

DH Robotics AG-95

$3,942.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

DH-Robotics (Dahuan) offers the DH Robotics AG-95, a end effector suited to demanding robotics and automation workloads. DH Robotics AG-95 specifications include AG-160-95 of AG-105-145 | DH-3, Gripping force (per jaw) of 45~160 N, and 35~105 N of 10~65 N. DH Robotics AG-95 gives engineers a practical end effector option for lab validation and field rollout

Delivery / Pickup Options
Order summaryUSD
Merchandise$3,942.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$94.57
Estimated total before tax$4,036.57

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

24 V DC ± 10%
Rated Voltage
95 mm
Stroke
1 kg
Net weight

All Specifications

BrandDH-Robotics (Dahuan)
CategoryEnd Effector
AvailabilityBackorder
Net weight1 kg
AG 160 95AG-105-145 | DH-3
35~105 N10~65 N
145 Mm106 mm (parallel) 122 mm (centric)
Recommended Workpiece Weight3 kg
2 Kg1.8 kg
Opening/Closing Time0.9 s/0.9 s
0.9 S/0.9 S0.7 s/0.7 s
± 0.03 Mm± 0.03 mm
Noise Emission＜ 60 dB
＜ 60 D B＜ 60 dB
Weight1 kg
1.3 Kg1.68 kg
Driving MethodScrew nut + Linkage mechanism
Screw Nut + Linkage MechanismGear drive + Screw nut + Linkage mechanism
Size184.6 mm x 162.3 mm x 67 mm
203.9 Mm X 212.3 Mm X 67 Mm213.5 mm x 170 mm x 118 mm
24 V DC ± 10%24 V DC ± 10%
0.8 A0.5 A
1.5 A1 A
IP ClassIP 54
IP 54IP 40
Recommended Environment0~40°C, under 85% RH
CertificationCE，FCC，RoHS
Repeat Accuracy (Position)± 0.03 mm
