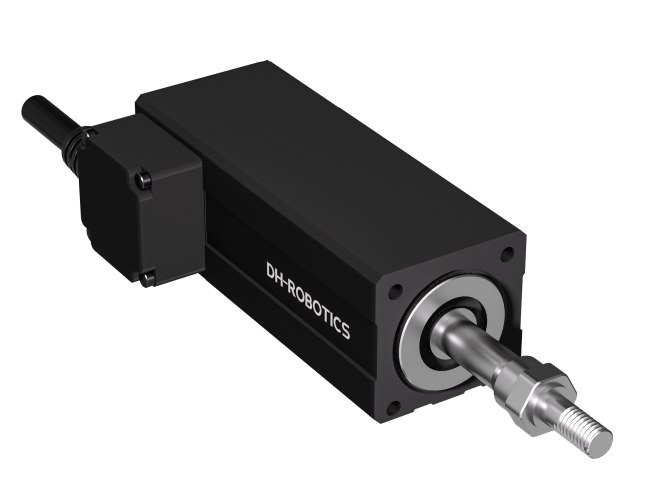

DH Robotics RCEA Series

Compact rod-type servo electric cylinder with configurable screw pitch. 35 mm body width, up to 200 N push force, ±0.01 mm repeatability.

DH Robotics RCEA Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics RCEA Series Specs

ModelRCEA-3M
Rated Push Force30-200 N (pitch dependent)
Stroke30-50 mm
Max Speed50-300 mm/s
Max Acceleration2000-3000 mm/s²
Position Repeatability±0.01 mm
Horizontal Load2-8 kg
Vertical Load0.5-2 kg
Screw Pitch Options1, 2, 4, 6 mm
Weight0.47-0.55 kg
Body Width35 mm
IP RatingIP40
Voltage24V DC ±10%
CertificationsCE, FCC, RoHS, TUV
