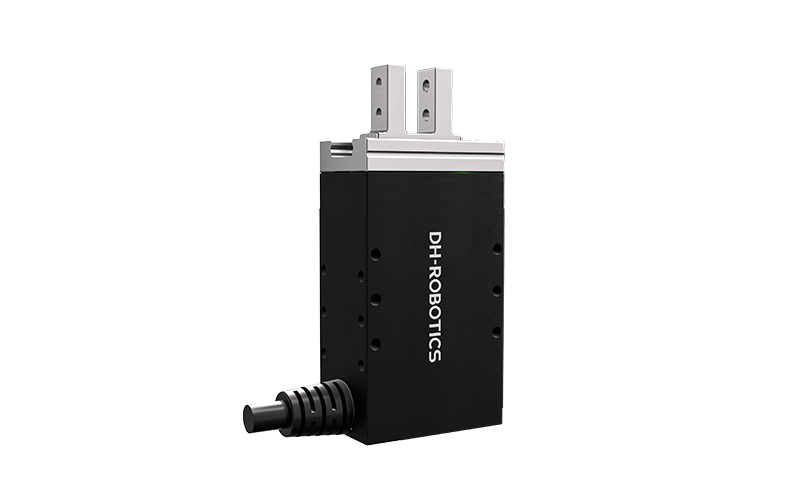

DH Robotics PGSE Series

Compact economy parallel electric gripper. Drop-in replacement for pneumatic grippers with ultra-fast 0.15 s cycle time and lightweight 0.15 kg design.

DH Robotics PGSE Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics PGSE Series Specs

ModelPGSE-15-7
Grip Force (single side)6-15 N
Stroke7 mm
Max Recommended Load0.25 kg
Open/Close Time0.15 s
Weight0.15 kg
Dimensions85.6 × 38 × 23.2 mm
IP RatingIP40
Operating Noise<50 dB
Voltage24V DC ±10%
CommunicationModbus RTU (RS485), Digital I/O
CertificationsCE, FCC, RoHS
