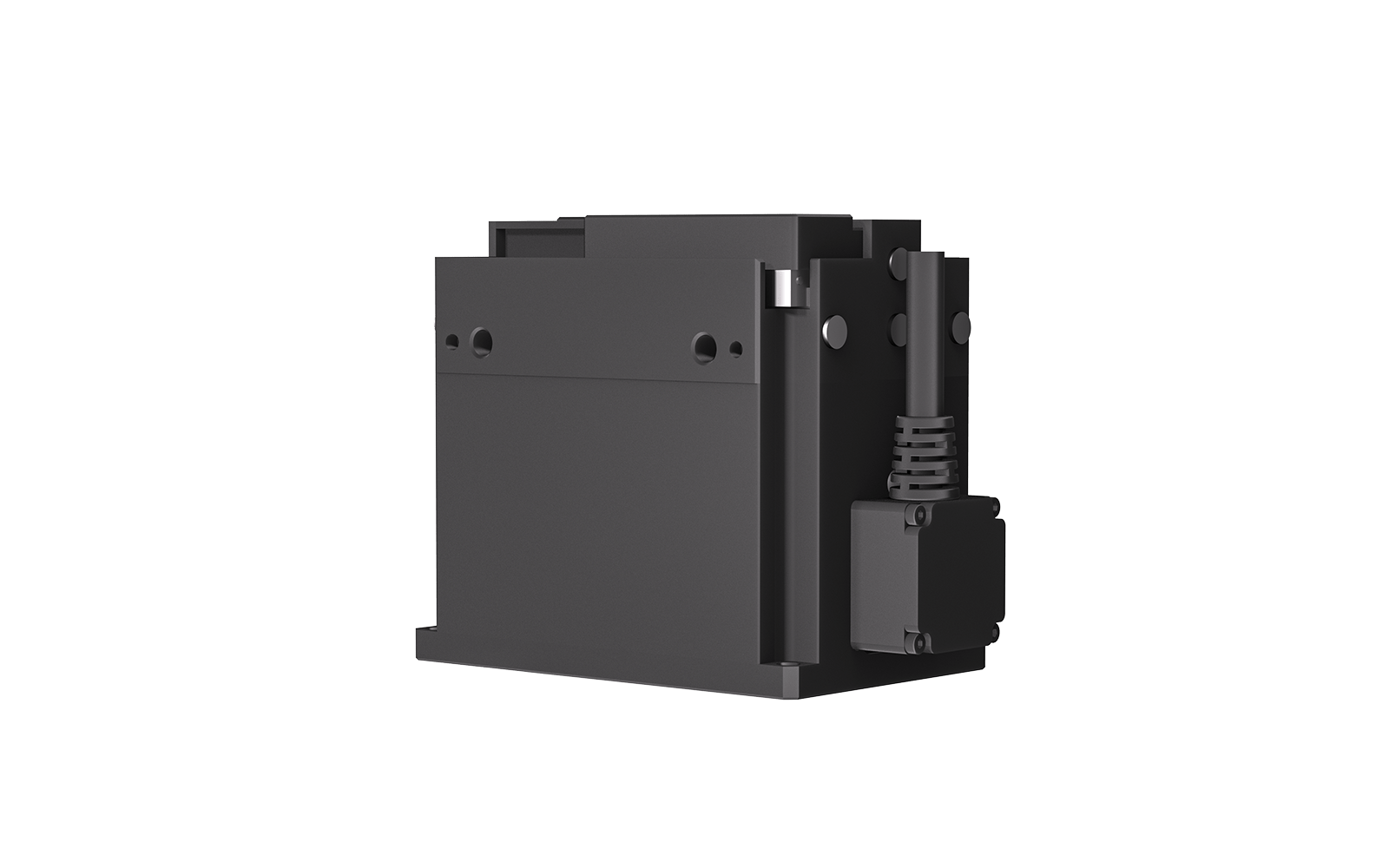

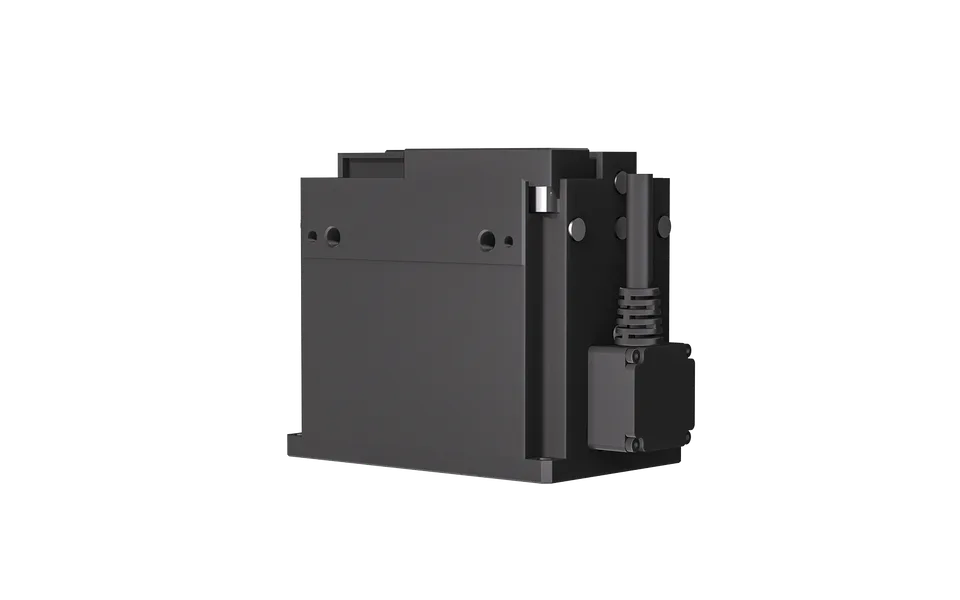

DH Robotics PGIA Series

Industrial parallel electric gripper with 80 mm long stroke and 140 N grip force. Rack-and-pinion with recirculating ball bearing rail drive system.

DH Robotics PGIA Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics PGIA Series Specs

ModelPGIA-140-80
Grip Force (single side)40-140 N
Stroke80 mm
Max Recommended Load3 kg
Position Repeatability±0.02 mm
Weight1 kg
Dimensions97 × 62 × 86 mm
IP RatingIP54
Operating Noise<50 dB
Voltage24V DC ±10%
Peak Power40 W
CommunicationModbus RTU (RS485), Digital I/O; optional EtherCAT, PROFINET, CAN
CertificationsCE, FCC, RoHS
