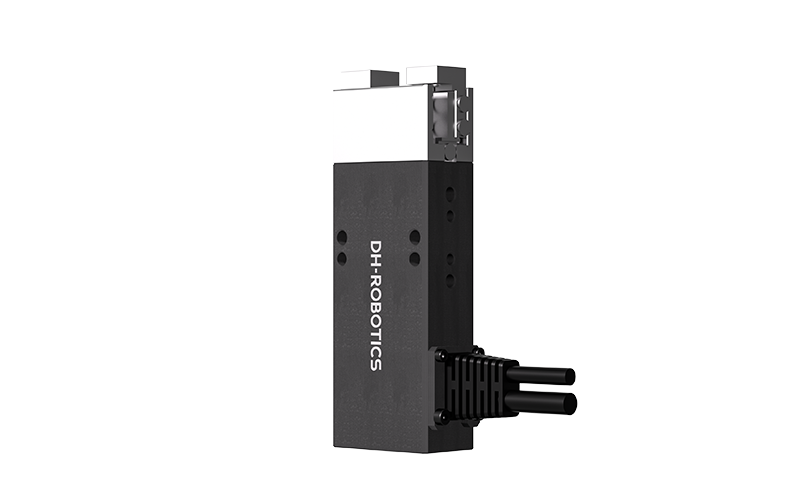

DH Robotics PGEA Series

Ultra-thin industrial parallel clamping gripper series with 8 models. Only 18 mm thin profile with 0.1 N force precision and 0.25 s response time.

DH Robotics PGEA Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics PGEA Series Specs

ModelsPGEA-2-10, PGEA-15-10, PGEA-15-26, PGEA-50-26, PGEA-100-26, PGEA-15-40, PGEA-50-40, PGEA-100-40
Grip Force0.8-100 N
Stroke10-40 mm
Position Repeatability±0.02 mm
Min Thickness18 mm
Force Precision0.1 N
Response Time0.25 s
Weight0.15-0.6 kg
IP RatingIP40
Operating Noise<50 dB
Voltage24V DC ±10%
CommunicationModbus RTU (RS485), Digital I/O; optional EtherCAT, PROFINET, CAN
CertificationsCE, FCC, RoHS
