DH Robotics PGC Series
DH-Robotics (Dahuan)

DH Robotics PGC Series

$2,480.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

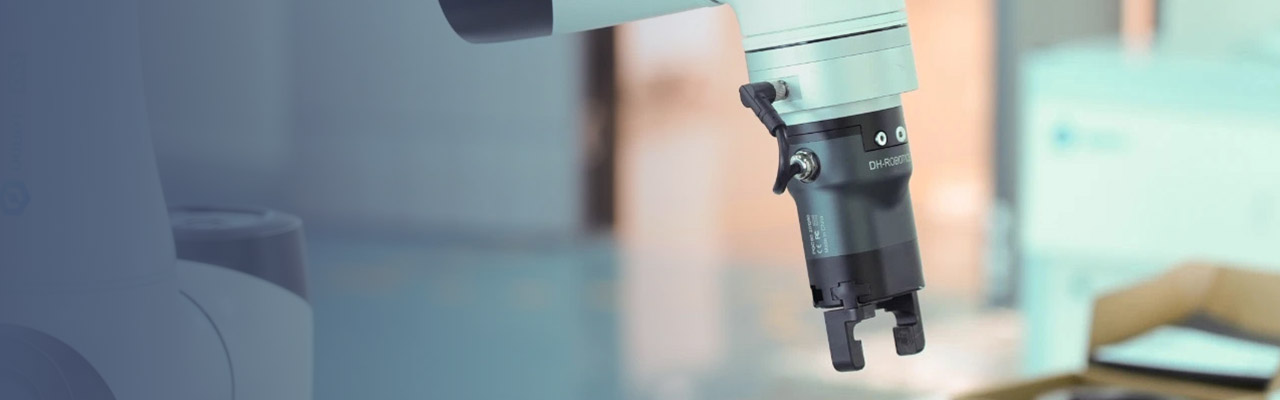

Collaborative parallel electric gripper series (PGC-50-35 / PGC-140-50 / PGC-300-60). Grip force 15-300 N, stroke 37-60 mm, ±0.03 mm repeatability. IP54-IP67 rated, power-off locking, Modbus RTU / RS485 + optional EtherCAT / PROFINET. Red Dot & iF Award 2021 winner. CE/FCC/RoHS.

Delivery / Pickup Options
Order summaryUSD
Merchandise$2,480.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$83.60
Estimated total before tax$2,563.60

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

24 V DC ± 10%
Rated Voltage
37 mm
Stroke
0.8 kg
Net weight

All Specifications

BrandDH-Robotics (Dahuan)
CategoryEnd Effector
AvailabilityBackorder
Net weight0.8 kg
PGC 50 35PGC-140-50 | PGC-300-60
40~140 N80~300 N
50 Mm60 mm
Recommended Workpiece Weight1 kg
3 Kg6 kg
Opening/Closing Time0.7 s/0.7 s
0.75 S/0.75 S0.8 s/0.8 s
± 0.03 Mm± 0.03 mm
Noise Emission< 50 dB
< 50 D B< 50 dB
Weight0.5 kg
1 Kg1.5 kg
Driving MethodPrecision planetary reducer + Rack and pinion
Precision Planetary Reducer + Rack And PinionPrecision planetary reducer + Rack and pinion
Size124 mm x 63 mm x 63 mm
138.5 Mm X 75 Mm X 75 Mm178 mm x 90 mm x 90 mm
24 V DC ± 10%24 V DC ± 10%
0.4 A0.4 A
1.2 A2 A
IP ClassIP 54
IP 67IP 67
Recommended Environment0~40°C, under 85% RH
CertificationCE，FCC，RoHS
Repeat Accuracy (Position)± 0.03 mm
