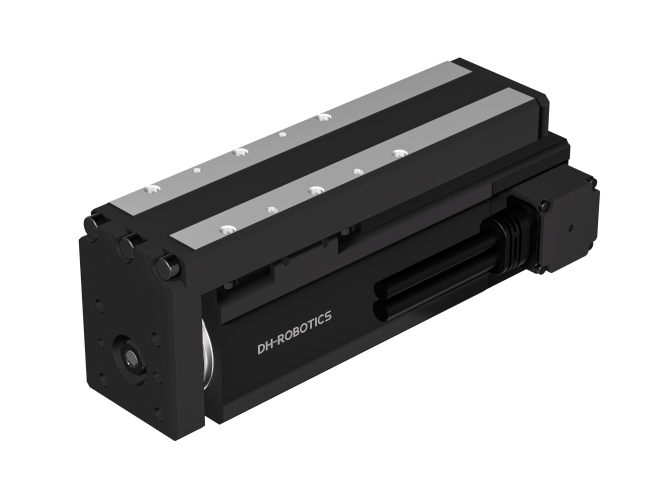

DH Robotics MCEA Series

High energy density micro slide table electric cylinder series. Only 35 mm wide body with up to 200 N force and 15 kg horizontal load capacity.

DH Robotics MCEA Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics MCEA Series Specs

ModelsMCEA-3G, MCEA-3WG, MCEA-4G
Rated Force30-200 N (lead dependent)
Stroke30-150 mm
Max Speed50-330 mm/s
Max Acceleration2000-3000 mm/s²
Position Repeatability±0.01 mm (3G/3WG) / ±0.02 mm (4G)
Horizontal Load2-15 kg
Vertical Load0.5-6 kg
Weight0.47-1.65 kg
Body Width35 mm
IP RatingIP40
Voltage24V DC ±10%
CertificationsCE, FCC, RoHS
