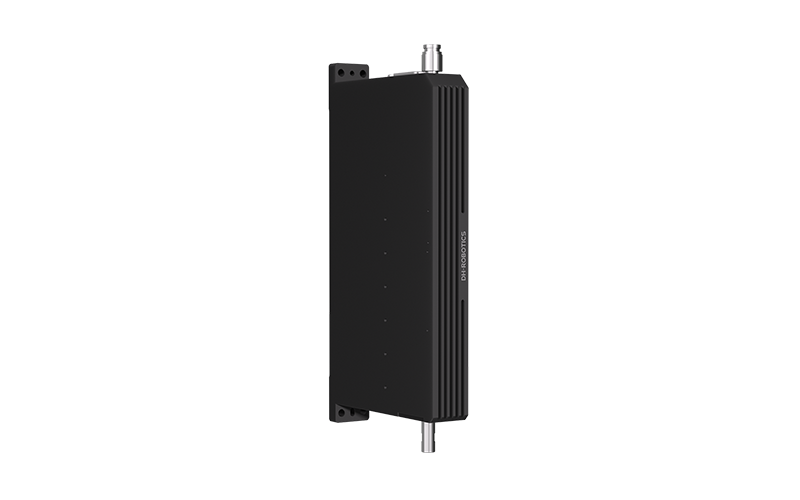

DH Robotics DLSR Series

Compact economy direct-drive linear rotary actuator with hollow shaft and soft landing. ±2 μm repeatability at 1.17 kg.

DH Robotics DLSR Series

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics DLSR Series Specs

ModelDLSR-25-50
Peak Thrust26 N
Continuous Thrust8 N
Stroke50 mm
Max Torque0.03 N·m
Max Rotation Speed800 RPM
Linear Resolution0.5 μm (optical) / 1 μm (magnetic)
Position Repeatability±2 μm (optical) / ±5 μm (magnetic)
Force Repeatability±10 g (50-200 g); ±5% (200-600 g)
Weight1170 g
Dimensions200 × 115 × 25 mm
IP RatingIP40
Voltage24V DC ±10%
CertificationsCE, FCC, RoHS
