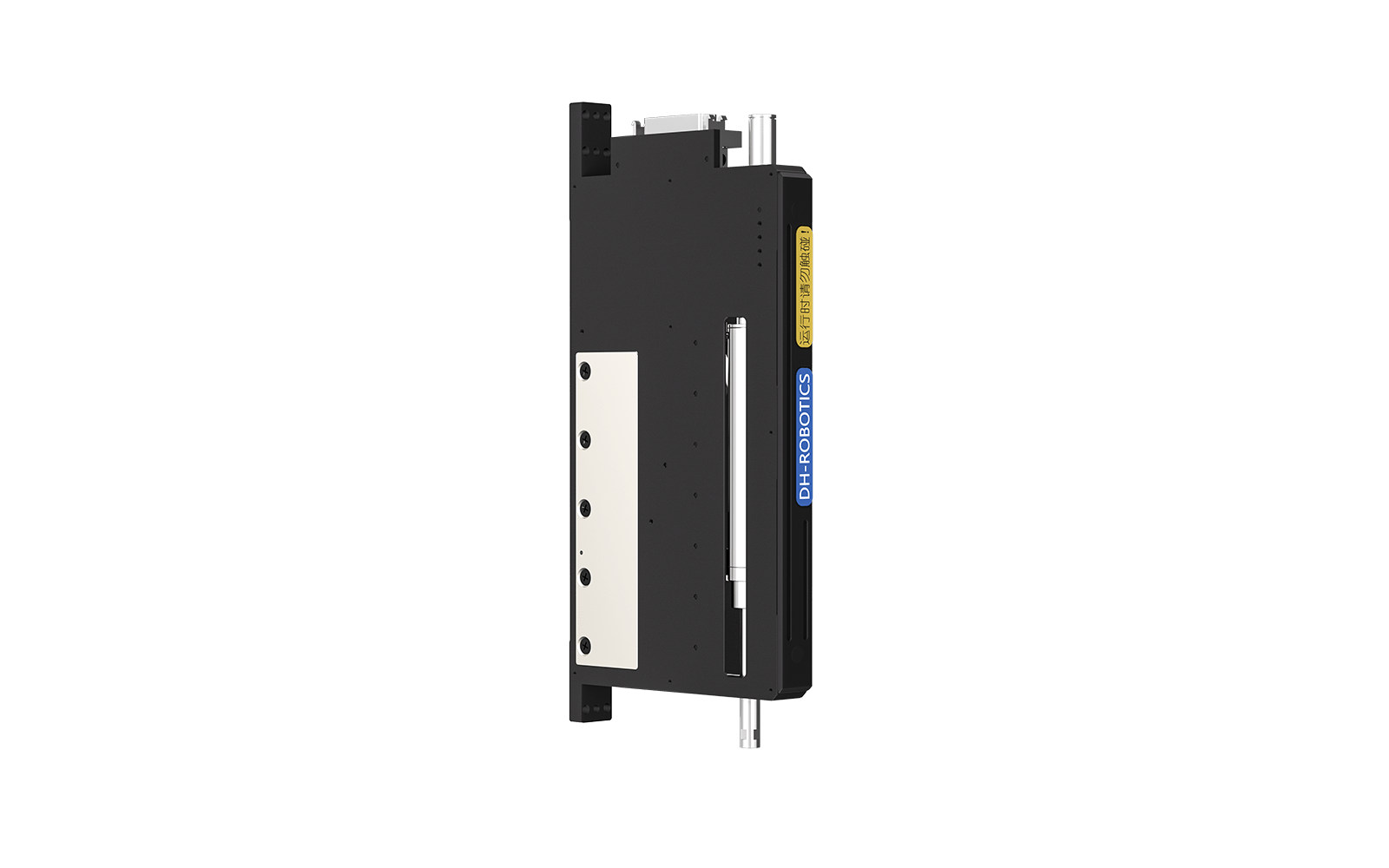

DH Robotics DLARA Series
DH-Robotics (Dahuan)

DH Robotics DLARA Series

$2,200.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

Direct-drive linear rotary actuator series (8 models: DLARA-16-25 through DLARA-35-50). Peak force 15-64 N, stroke 25-60 mm, 2000 RPM max. 0.5-1 um linear / 0.00275-0.005 deg rotational resolution. Hollow shaft, soft landing, spring power-loss protection. For precision assembly. CE/FCC/RoHS.

Delivery / Pickup Options
Order summaryUSD
Merchandise$2,200.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$81.50
Estimated total before tax$2,281.50

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

24V DC ±10%
Voltage
25-60 mm
Stroke
0.8 kg
Net weight
0.042-0.14 N·m
Max Torque

All Specifications

BrandDH-Robotics (Dahuan)
CategoryEnd Effector
AvailabilityBackorder
Net weight0.8 kg
ModelsDLARA-16-25, DLARA-16-40, DLARA-20-25, DLARA-20-40, DLARA-20-60, DLARA-25-25, DLARA-25-50, DLARA-35-50
Weight700-2370 g
IP RatingIP40
CertificationsCE, FCC, RoHS
Max Torque0.042-0.14 N·m
Max Rotation Speed2000 RPM
Linear Resolution0.5-1 μm
Rotational Resolution0.00275-0.005°
Linear Repeatability±2-5 μm
Rotational Repeatability±0.02-0.1°
