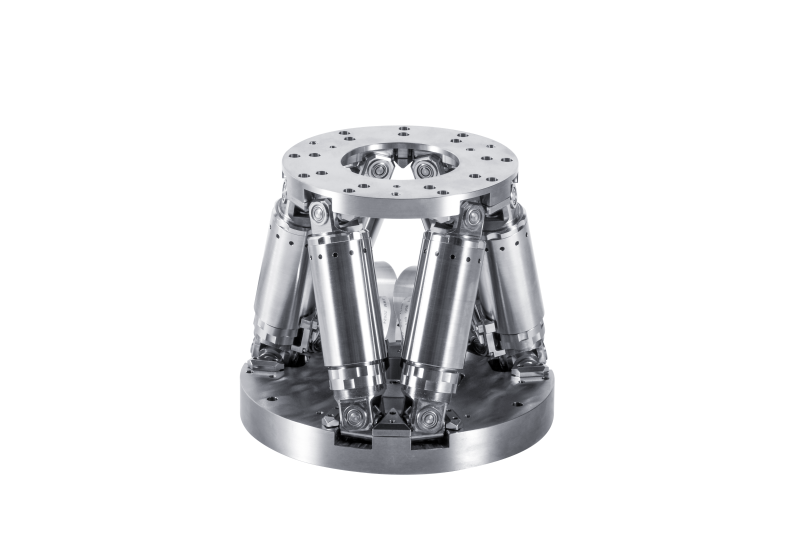

DH Robotics DHEX-100-50 Hexapod

Sub-micron precision 6-DOF hexapod positioning platform. Z-axis ±0.06 μm repeatability, 5 kg horizontal payload, 136 mm base diameter.

DH Robotics DHEX-100-50 Hexapod

Contact us for pricing and availability.

Request a Quote

DH Robotics authorized partner · contact@roboticscenter.ai

View on dh-robotics.com →

Technical Specifications

DH Robotics DHEX-100-50 Hexapod Specs

ModelDHEX-100-50
Degrees of Freedom6
X Travel±17 mm
Y Travel±16 mm
Z Travel±6.5 mm
Pitch/Roll±10°
Yaw±21°
Z Repeatability±0.06 μm
X/Y Repeatability±0.15 μm
Rotational Repeatability±2-3 μrad
Payload (horizontal)5 kg
Payload (any orientation)2.5 kg
Base Diameter136 mm
Min Height114.3 mm
