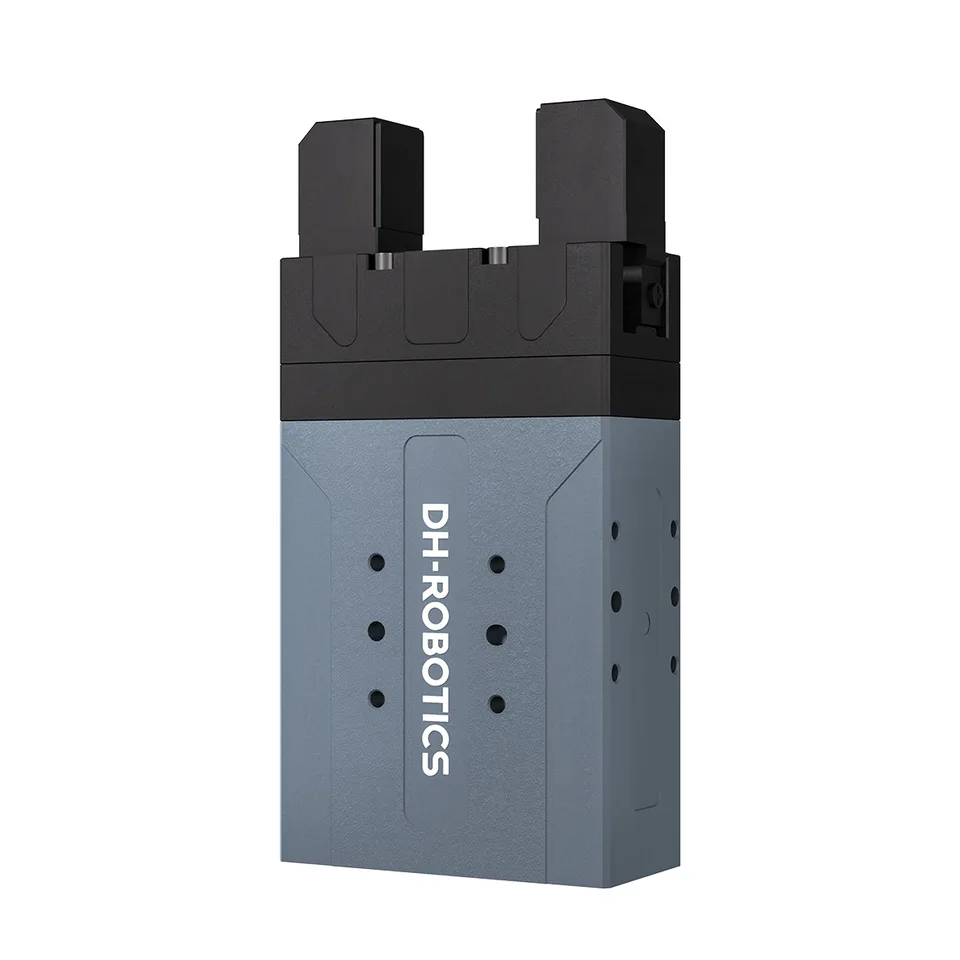

DH Robotics PGE-5-26
The DH-Robotics PGE-5-26 Mini Electric Gripper end effector from DH-Robotics (Dahuan) targets developers building production or prototype robotic systems. The PGE series is a small electric gripper with a slim 18mm profile, offering flexibility, precise force control, and fast response. Explore our mini electric grippers now!
$1,170.00Backorder
1
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
24 V DC ± 10% | 24 V DC ± 10%
Rated Voltage
26 mm | 14 mm
Stroke
0.4 kg
Net weight
All Specifications
BrandDH-Robotics (Dahuan)
CategoryEnd Effector
AvailabilityBackorder
Net weight0.4 kg
PGE 5 26PGE-8-14
Recommended Workpiece Weight0.1 kg | 0.1 kg
Opening/Closing Time0.3 s/0.3 s | 0.3 s/0.3 s
Noise Emission＜ 50 dB
Weight0.4 kg | 0.4 kg
Driving MethodRack and pinion + Cross roller guide | Rack and pinion + Linear guide
Size95 mm x 55 mm x 26 mm (without brake) 113.5 mm x 55 mm x 26 mm (with brake) | 97 mm x 62 mm x 31 mm
IP ClassIP 40 | IP 40
Recommended Environment0~40°C, under 85% RH
CertificationCE，FCC，RoHS
Repeat Accuracy (Position)± 0.02 mm | ± 0.02 mm
Communication InterfaceStandard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
Rated Voltage24 V DC ± 10% | 24 V DC ± 10%
Rated Current0.4 A | 0.4 A
Peak Current0.7 A | 0.7 A
Gripping Force (Per Jaw)0.8~5 N | 2~8 N
Stroke26 mm | 14 mm
