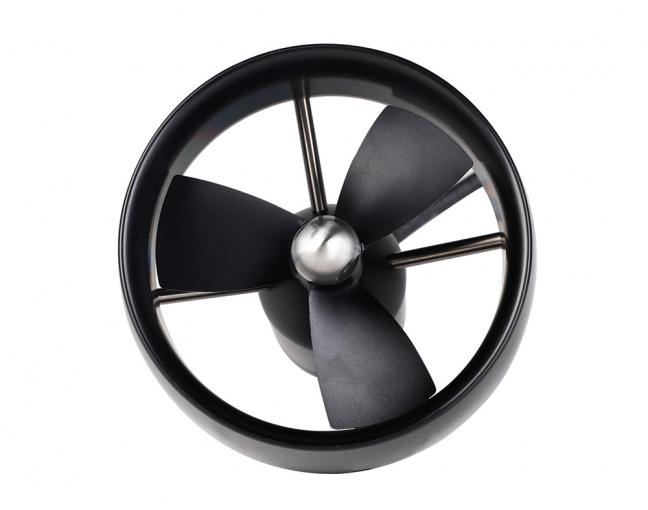

CubeMars DW25 Underwater Thruster
CubeMars

CubeMars DW25 Underwater Thruster

$599.90Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

High-performance underwater thruster for medium-to-large ROVs and AUVs, delivering ≥25 kgf max bollard thrust at 48V with 1,315W rated power. Rated to 350 m depth with precision-cast aluminum alloy body and dual-chamber sealing. Weighs 1,790 g in air / 995 g in water.

Delivery / Pickup Options
Order summaryUSD
Merchandise$599.90
Expedited delivery optionIncluded
Shipping (U.S. estimate)$69.50
Estimated total before tax$669.40

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

48V
Rated Voltage
1 kg
Net weight
1315W
Rated Power

All Specifications

BrandCubeMars
CategoryActuator & Motor
AvailabilityBackorder
Net weight1 kg
Main Shaft Sealing MethodLow-resistance dynamic seal
Main Body StructureTwo-stage sealing chamber
Maximum Mooring Thrust≥25kgf
Cable SpecificationsTPU（Matte） φ9.5mm- 3*12AWG- 1.5M
Applicable Water Depth0-350M
DriverExternal
Material Of The NozzlePOM
ApplicationsUnmanned surface vehicle, Electric surfboard，ROV,etc.
Material Of The PropellerAluminum alloy
Weight1780g(in the air) 995g(in the water)
Material Of The ShellAluminum alloy
Environmental Conditions0-50℃(Storage) 0-40℃(Operating )
Propeller Specificationsφ126mm
Usage TipsRinse with clean water promptly after use.
Motor Rotor Pole Number20P
Recommended ESC MatchingTW-80A-12S
Rated Power1315W
Rated Voltage48V
