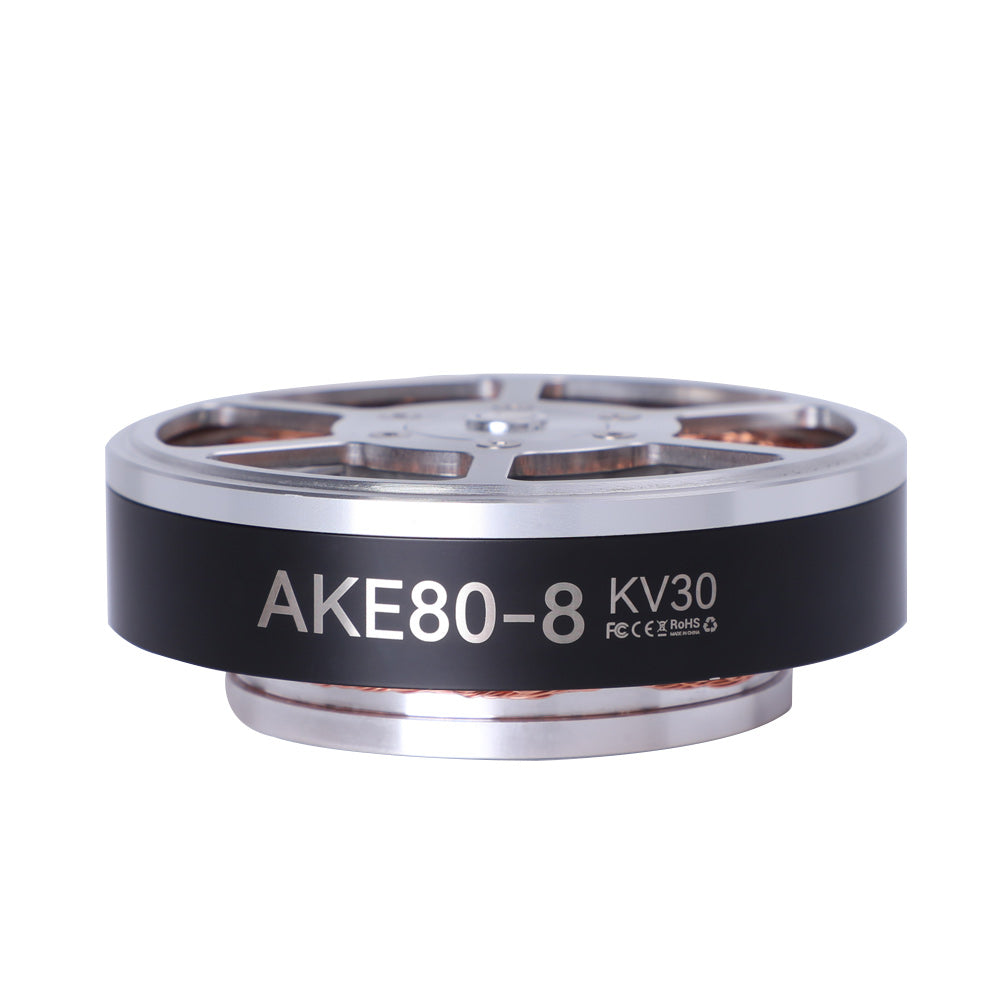

CubeMars AKE80-8 KV30
CubeMars

CubeMars AKE80-8 KV30

$339.90Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

The CubeMars AKE80-8 KV30 actuator & motor from CubeMars targets developers building production or prototype robotic systems. AKE80-8 KV30 Quasi Direct Drive Motor integrates motor and planetary gearbox, ideal for exoskeletons and robotic arms, with high load capacity, lightweight design, and 52N. AKE80-8 KV30 Quasi Direct Drive Motor integrates motor and planetary gearbox, ideal for exoskeletons and robotic arms, with high load capacity, lightweight design, and 52N

Delivery / Pickup Options
Order summaryUSD
Merchandise$339.90
Expedited delivery optionIncluded
Shipping (U.S. estimate)$67.55
Estimated total before tax$407.45

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

30
Peak Torque (Nm)
500
Insulation High Voltage (V)
1.5 kg
Net weight
12
Rated Torque (Nm)

All Specifications

BrandCubeMars
CategoryActuator & Motor
AvailabilityBackorder
Net weight1.5 kg
ApplicationExoskeleton
Driving WayFOC
Operation Ambient Temperature-20℃~50℃
Winding Typestar
Kt (Nm/A)0.32
Insulation ClassF
Ke (V/Krpm)33
Phase To Phase Resistance (MΩ)870
Insulation Resistance (MΩ)10
Phase To Phase Inductance (μH)990
Pole Pairs21
Inertia (Gcm²)1471.75
Backlash (Arcmin)9
Km (Nm/√W)0.34
Mechanical Time Constant (Ms)2.3
Weight (G)570
Reduction Ratio8:1
Peak Torque (Nm)30
Kv (Rpm/V)30
No Load Speed (Rpm)195
Rated Torque (Nm)12
Rated Speed (Rpm)150
Maximum Torque Weight Ratio (Nm/Kg)52
