CubeMars AKE60-8 KV80
CubeMars

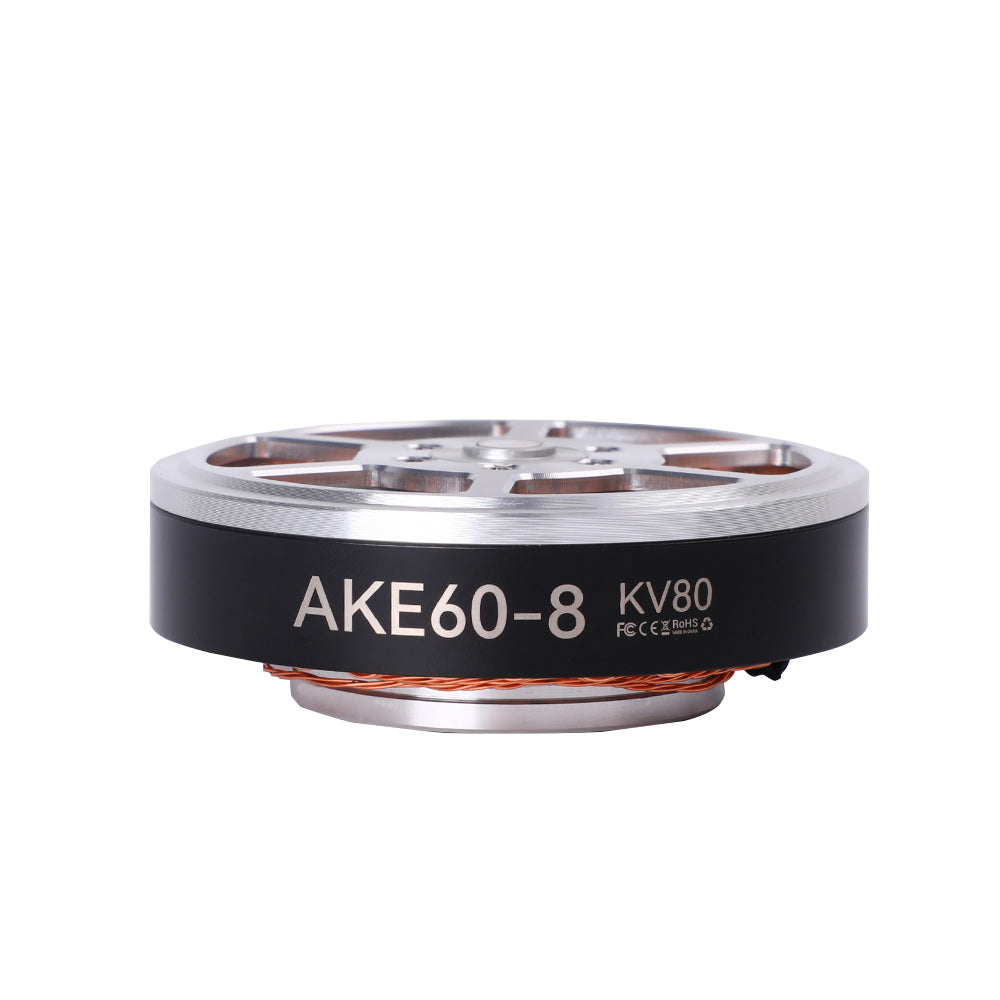

CubeMars AKE60-8 KV80

$218.90Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

The AKE60-8 KV80 quasi-direct drive motor integrates a brushless motor and planetary reducer, and is suitable for exoskeletons, robots and collaborative robotic arms. It has high load-bearing capacity and a modular design.

Delivery / Pickup Options
Order summaryUSD
Merchandise$218.90
Expedited delivery optionIncluded
Shipping (U.S. estimate)$66.64
Estimated total before tax$285.54

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

12.5
Peak Torque (Nm)
500
Insulation High Voltage (V)
1.5 kg
Net weight
5
Rated Torque (Nm)

All Specifications

BrandCubeMars
CategoryActuator & Motor
AvailabilityBackorder
Net weight1.5 kg
ApplicationExoskeleton
Driving WayFOC
Operation Ambient Temperature-20℃~50℃
Winding Typestar
Kt (Nm/A)0.13
Insulation ClassF
Ke (V/Krpm)12.5
Phase To Phase Resistance (MΩ)577
Insulation Resistance (MΩ)10
Phase To Phase Inductance (μH)704
Pole Pairs14
Inertia (Gcm²)647.39
Backlash (Arcmin)9
Km (Nm/√W)0.15
Mechanical Time Constant (Ms)1.2
Weight (G)260
Reduction Ratio8:1
Peak Torque (Nm)12.5
Kv (Rpm/V)80
No Load Speed (Rpm)240
Rated Torque (Nm)5
Rated Speed (Rpm)180
Maximum Torque Weight Ratio (Nm/Kg)46
