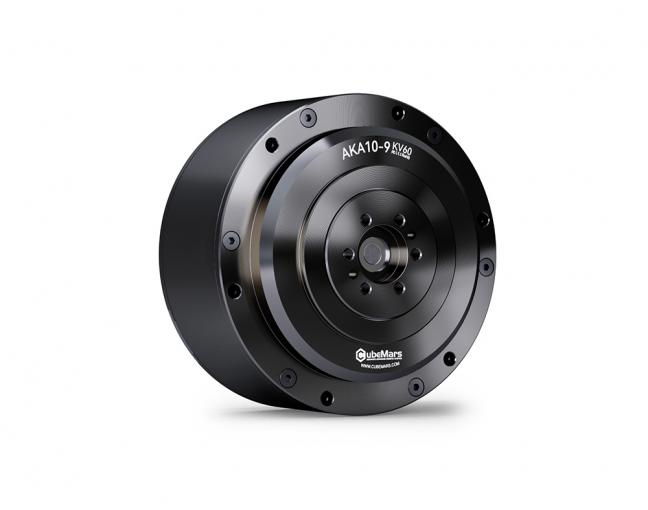

CubeMars AKA10-9 KV60
$798.90Backorder
Key Specifications
53Nm
Peak Torque
48V | Ke | 0.0167V/krpm
Rated Voltage
1.5 kg
Net weight
∅100*70mm
Motor Dimensions
18Nm | Phase To Phase Inductance | 235μH
Rated Torque
All Specifications
BrandCubeMars
CategoryActuator & Motor
AvailabilityBackorder
Net weight1.5 kg
Driving WayAGV、Wheeled Robot: FOC | Insulation Class: Insulation High-Voltage | C: 1000V 5mA/2s
Operation Ambient Temperature℃AGV、Wheeled Robot: -20℃~50℃ | Insulation Class: Insulation Resistance | C: 1000V 10MΩ
Winding TypeAGV、Wheeled Robot: star | Insulation Class: Back drive | C: 0.8 Nm
Pole PairsAGV、Wheeled Robot: 21 | Insulation Class: Backlash | C: 0.15°
PhaseAGV、Wheeled Robot: 3 | Insulation Class: Reduction Ratio | C: 9∶1
Temperature SensorAGV、Wheeled Robot: NTC MF51B 103F3950 | Insulation Class: Noise dBDistance from motor: 65CM (Environment: 45dB@1200rpm) | C: 50
Rated Radial LoadAGV、Wheeled Robot: 50kg | Insulation Class: Weight | C: 1060g
Inertia1002gcm² | Kv | 60rpm/V
Outer Ring Encoder TypeMagnetic encoder | Outer ringencoder resolution | 16bit
Motor Dimensions∅100*70mm
Motor Weight1060g
No Load Speed280rpm | Phase To Phase Resistance | 248mΩ
Rated Torque18Nm | Phase To Phase Inductance | 235μH
Rated Speed109rpm | Km | 0.32Nm/√W
Peak Torque53Nm
Maximum Torque Weight Ratio53Nm/kg
High Torque Density OutputDelivers 53 Nm peak torque with a weight of only 1.06 kg, achieving an impressive torque density of 50 Nm/kg
Rated Voltage48V | Ke | 0.0167V/krpm
Rated Current10.6ADC | Mechanical Time Constant | 1.90ms
Peak Current32ADC | Kt | 0.16Nm/A
Plug In Connector DesignFeatures a new 2+5 PIN connector with integrated power and signal lines for reliable and secure connections
