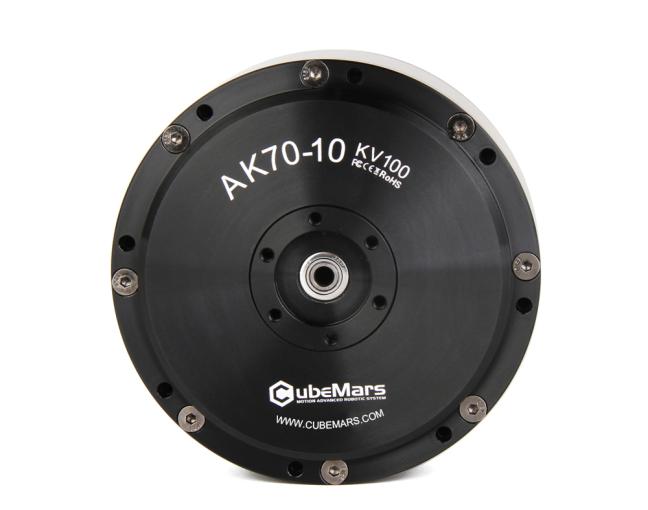

CubeMars AK70-10 KV100
CubeMars

CubeMars AK70-10 KV100

$398.90Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

CubeMars offers the CubeMars AK70-10 KV100, a actuator & motor suited to demanding robotics and automation workloads. CubeMars exoskeleton robot motor AK70-10 product features include：1、High Torque Module;2、Highly Integrated;3、Applied to Exoskeleton, Quadruped Robotic Dog;4、UART CAN Interface CubeMars exoskeleton robot motor AK70-10 product features include：1、High Torque Module;2、Highly Integrated;3、Applied to Exoskeleton, Quadruped Robotic Dog;4、UART CAN Interface AK70-10 KV100 Robotic Actuator - 24/48V, 10:1 Ratio Detail informationSpecificationsSupport and DownloadsLeave Message The CubeMars AK70-10 KV100 robotic actuator integrates a high-performance brushless DC motor, 10:1 planetary gearbox, driver board, and encoder into a compact, easy-to-install unit. Featuring a 10:1 gear reduction, it delivers increased torque output while maintaining fast response times

Delivery / Pickup Options
Order summaryUSD
Merchandise$398.90
Expedited delivery optionIncluded
Shipping (U.S. estimate)$67.99
Estimated total before tax$466.89

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

24.8
Peak Torque (Nm)
1000V 5mA/2s
Insulation High Voltage
1.5 kg
Net weight
47.6
Maximum Torque Weight Ratio (Nm/Kg)
XT30PW-M
Power Connector

All Specifications

BrandCubeMars
CategoryActuator & Motor
AvailabilityBackorder
Net weight1.5 kg
ApplicationLegged Robot,Exoskeleton,AGV
Driving WayFOC
Operation Ambient Temperature-20℃~50℃
Winding TypeDelta
Kt (Nm/A)0.123
Insulation ClassH
Ke (V/Krpm)11.2
Phase To Phase Resistance (MΩ)272
Insulation Resistance1000V10MΩ
Phase To Phase Inductance (μH)113
PhaseThree Phase
Inertia (Gcm²)753.4788
Pole Pairs21
Km (Nm/√W)0.24
Reduction Ratio10:01
Mechanical Time Constant (Ms)0.74
Back Drive(Nm)0.48
Backlash (°)0.12
Weight (G)621
Temperature SensorNTC MF51B 103F3950
Noise D B 65CM Away The Motor58
Basic Load Ratings (Dyn. C ) N2000
Basic Load Ratings (Stat.C0) N2520
Inner Loop Encoder TypeMagnetic encoder
Outer Ring Encoder Type-
Peak Torque (Nm)24.8
Kv (Rpm/V)100
Maximum Torque Weight Ratio (Nm/Kg)47.6
Rated Torque (Nm)8.3
Inner Ring Encoder Resolution14bit
Rated Speed (Rpm)148/310
Outer Ring Encoder Resolution-
