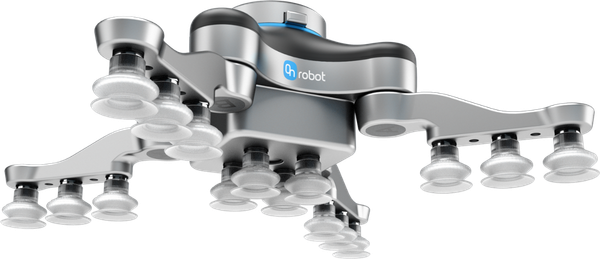

OnRobot VG10

Flexible dual-zone electric vacuum gripper with up to 15 kg payload and 2 independent air channels. Accommodates 1–16 suction cups on 4 adjustable arms. No external air supply required. Ideal for machine tending, packaging, and material handling.

OnRobot VG10

Contact us for pricing and availability.

Request a Quote

OnRobot authorized partner · contact@roboticscenter.ai

Technical Specifications

OnRobot VG10 Specs

Payload (nominal)10 kg
Payload (max)15 kg
Vacuum Channels2 (independent)
Suction Cups1–16
Weight0.814 kg
Air Flow0–12 L/min
Gripping Time0.35 s
IP RatingIP54
Power Supply24 V
Dimensions105 × 146 × 146 mm
