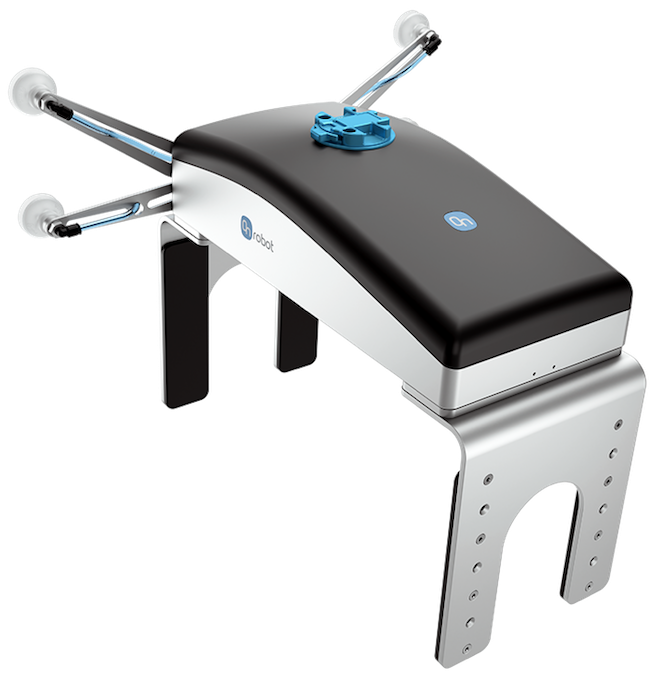

OnRobot 2FGP20

Versatile electric palletizer gripper with 20 kg payload, 260 mm total stroke, and 80–400 N gripping force. Gripping width 170–430 mm with integrated vacuum cups for slip-sheet handling. Purpose-built for palletizing applications.

OnRobot 2FGP20

Contact us for pricing and availability.

Request a Quote

OnRobot authorized partner · contact@roboticscenter.ai

Technical Specifications

OnRobot 2FGP20 Specs

Payload20 kg
Total Stroke260 mm
Gripping Force80–400 N
Gripping Width170–430 mm
Weight5.2 kg (with fingers & vacuum cups)
Repeatability±0.5 mm
IP RatingIP54
Power Supply24 V
Dimensions400 × 121.6 × 188 mm
Operating Temperature0–50 °C
