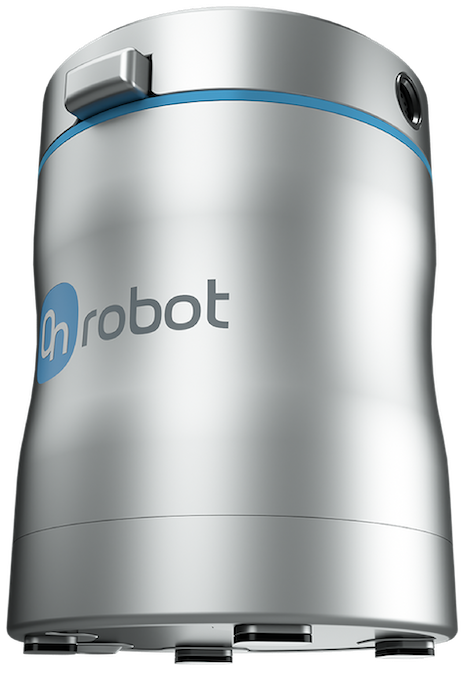

OnRobot MG10

Electric magnetic gripper with up to 10 kg payload and adjustable force. IP67 rated with 300 ms gripping time. Retains magnetic force on power loss for safety. No external air supply needed. Ideal for ferrous material handling, assembly, and machine tending.

OnRobot MG10

Contact us for pricing and availability.

Request a Quote

OnRobot authorized partner · contact@roboticscenter.ai

Technical Specifications

OnRobot MG10 Specs

PayloadUp to 10 kg (steel, no pads)
Weight0.8 kg
Gripping Time300 ms
IP RatingIP67
Power Supply20.4–28.8 V
Current Consumption600–2000 mA
Operating Temperature5–50 °C
SafetyRetains force on power loss
ActuationElectric magnetic
CommunicationDigital I/O
