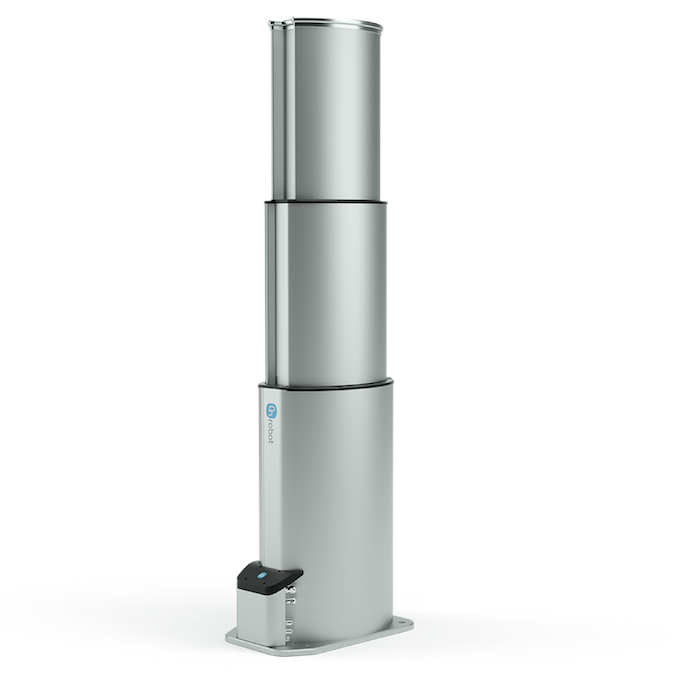

OnRobot LIFT100

Long-stroke, high-payload robot elevator adding a versatile 7th axis. 100 kg payload, 900 mm stroke, height range 730–1630 mm. Speed 10–100 mm/s with ±0.5 mm repeatability. IP54 rated. Designed for palletizing and manufacturing with collaborative robots.

OnRobot LIFT100

Contact us for pricing and availability.

Request a Quote

OnRobot authorized partner · contact@roboticscenter.ai

Technical Specifications

OnRobot LIFT100 Specs

Payload100 kg
Stroke900 mm
Height Range730–1630 mm
Speed10–100 mm/s
Positioning Accuracy±3 mm
Repeatability±0.5 mm
Weight86 kg
IP RatingIP54
Power Supply90–264 V
Operating Temperature0–50 °C
