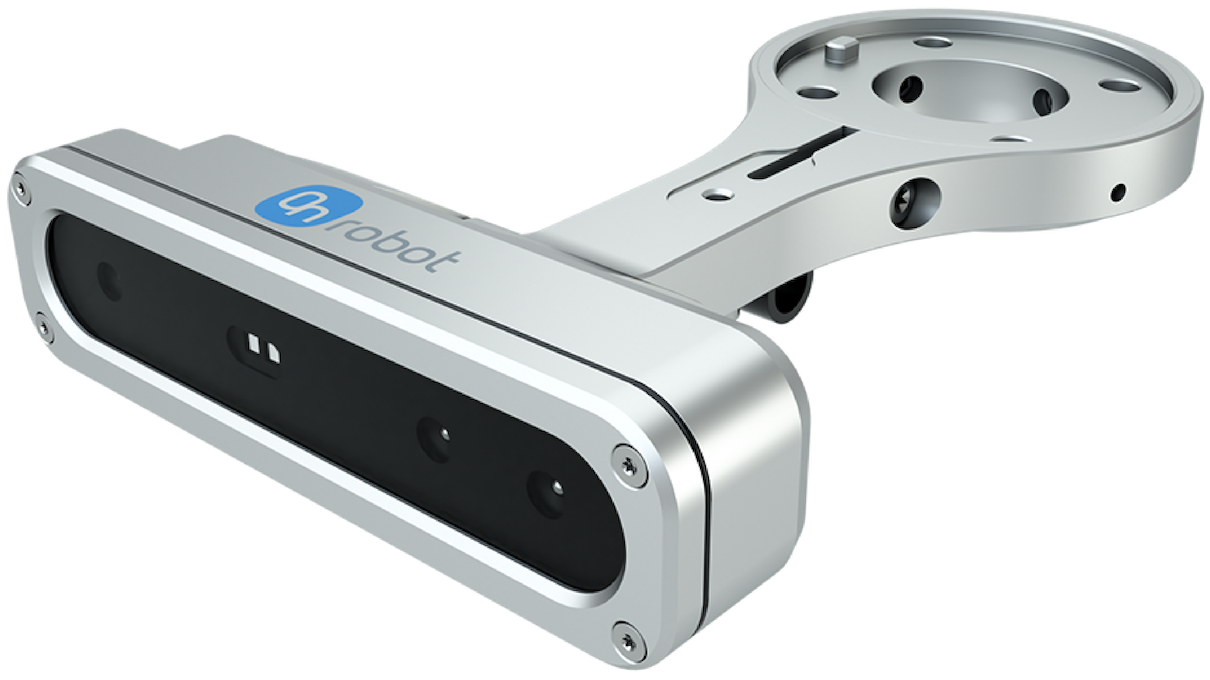

OnRobot Eyes 2.5D Vision

2.5D vision system with depth perception using active IR stereo. 1280×720 depth resolution, 1920×1080 close-up RGB. One-picture calibration, auto-focus 400–1000 mm working range. For pick-and-place, sorting, CNC machine tending, and quality inspection.

OnRobot Eyes 2.5D Vision

Contact us for pricing and availability.

Request a Quote

OnRobot authorized partner · contact@roboticscenter.ai

Technical Specifications

OnRobot Eyes 2.5D Vision Specs

Depth Resolution1280 × 720 px
RGB Resolution1920 × 1080 px (close-up)
Depth TechnologyActive IR Stereo
Field of View (RGB)69.4 × 42.5 × 77°
Working Distance400–1000 mm
Weight0.260 kg
InterfaceUSB-C 3.x
IP RatingIP54
Operating Life30,000 hours
Operating Temperature0–35 °C
