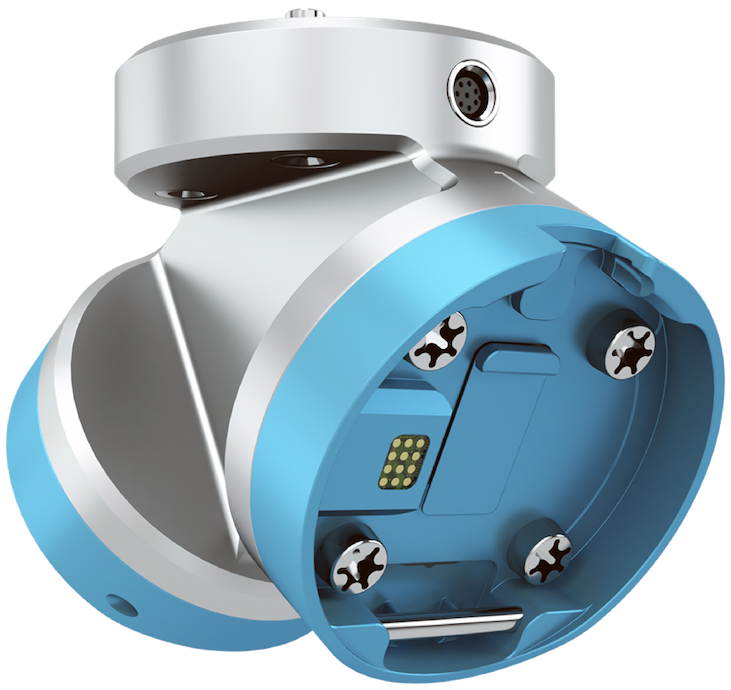

OnRobot Dual Quick Changer

Dual-port tool changer enabling two end-effectors on one robot arm simultaneously. 20 kg rated payload, 0.41 kg weight. Same fast-change mechanism as the Quick Changer with ISO 9409-1 flange. Improves cycle time for multi-tool applications.

OnRobot Dual Quick Changer

Contact us for pricing and availability.

Request a Quote

OnRobot authorized partner · contact@roboticscenter.ai

Technical Specifications

OnRobot Dual Quick Changer Specs

Payload20 kg
Weight0.41 kg
Change Time< 5 seconds
FlangeISO 9409-1
Ports2 (dual EoAT)
CompatibilityAll major robot brands
Power Supply24 V
Current4.5 A
Operating Temperature0–50 °C
CommunicationPass-through
