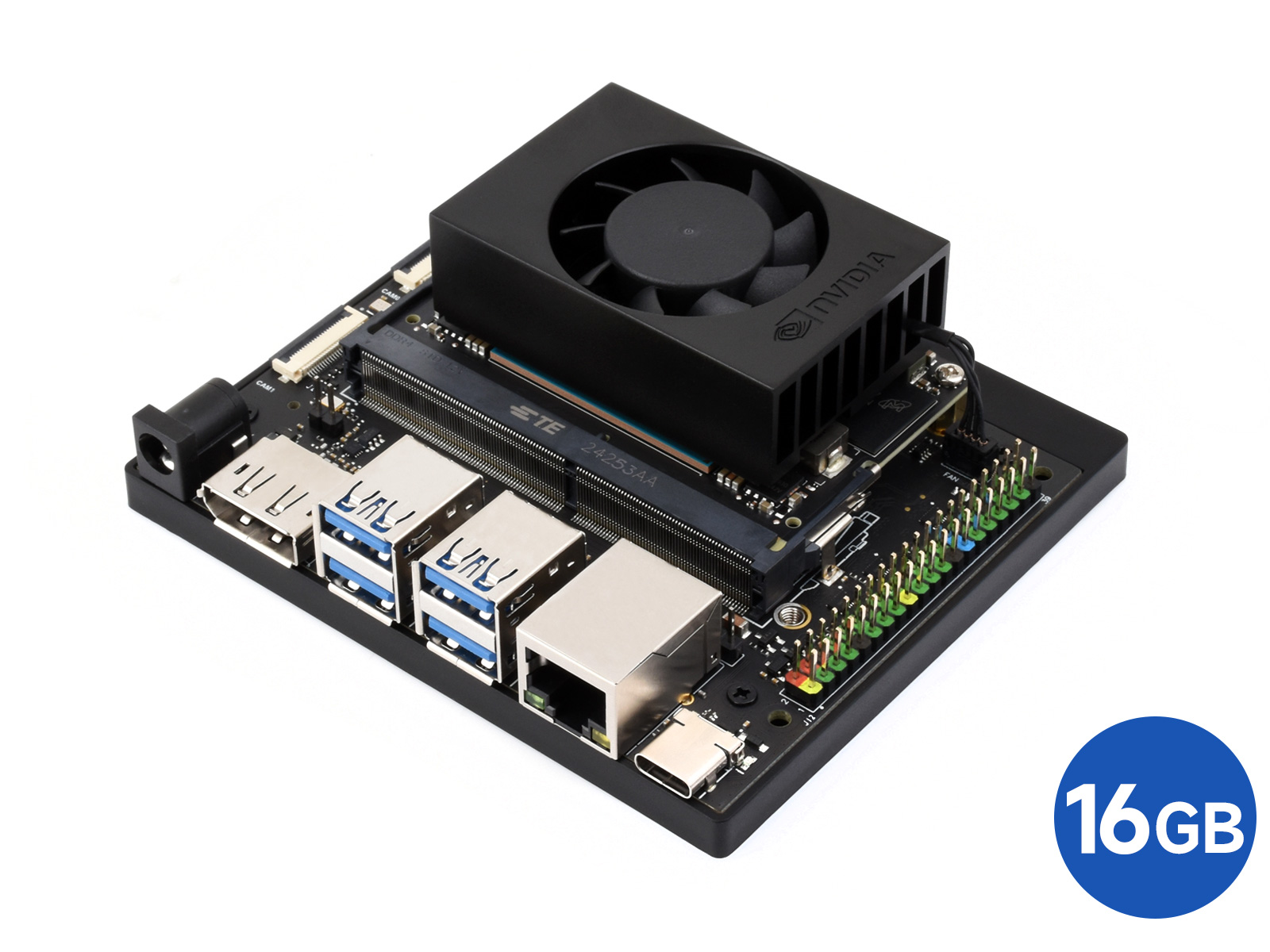

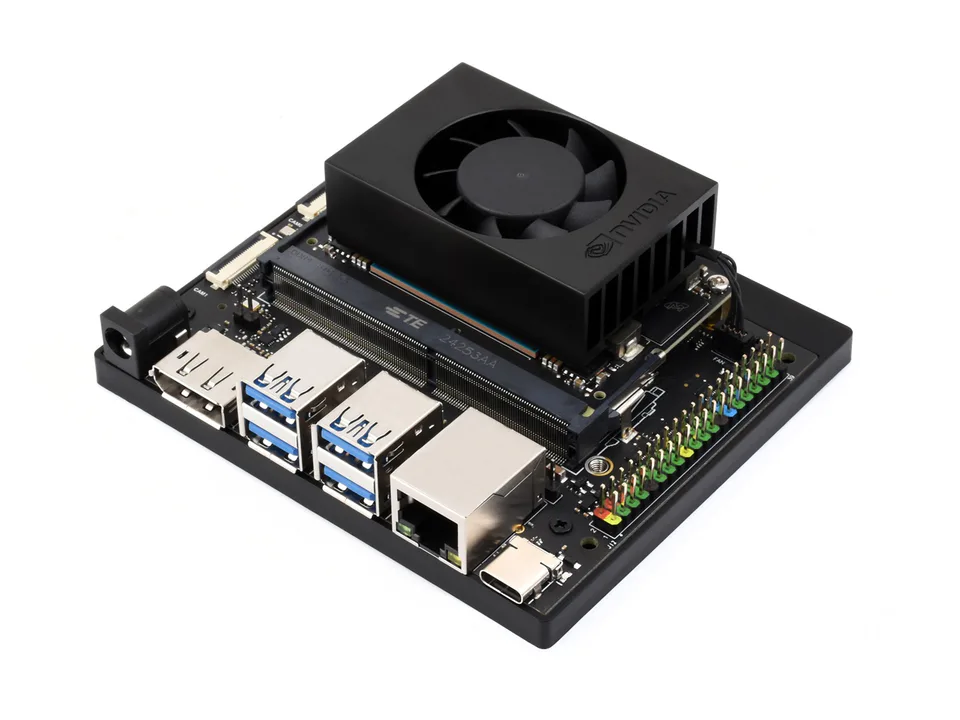

Waveshare Jetson Orin NX Dev Kit
Waveshare

Waveshare Jetson Orin NX Dev Kit

$720.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

The Waveshare Jetson Orin NX Dev Kit compute platform from Waveshare targets developers building production or prototype robotic systems. Waveshare Jetson Orin NX Dev Kit specifications include AI performance of 4GB moduleSUPER: 34 TOPS (sparse)17 TOPS (dense) | 8GB moduleSUPER: 67 TOPS (sparse)33 TOPS (dense), GPU of 4GB moduleSUPER: 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores | 8GB moduleSUPER: 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores, and GPU Frequency of 1020MHz (Max). Projects standardize on Waveshare Jetson Orin NX Dev Kit when compute platform accuracy and supportability matter

Delivery / Pickup Options
Order summaryUSD
Merchandise$720.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$70.40
Estimated total before tax$790.40

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

0.3 kg
Net weight
69.6 mm x 45 mm 260-pin SO-DIMM connector
Dimensions
4GB moduleSUPER: 7 W | 10 W | 25W | 8GB moduleSUPER: 7 W | 15 W | 25W
Power

All Specifications

BrandWaveshare
CategoryCompute Platform
AvailabilityBackorder
Net weight0.3 kg
AI Performance4GB moduleSUPER: 34 TOPS (sparse)17 TOPS (dense) | 8GB moduleSUPER: 67 TOPS (sparse)33 TOPS (dense)
GPU4GB moduleSUPER: 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores | 8GB moduleSUPER: 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
CPU6-core Cortex-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
Memory4GB moduleSUPER: 4GB 64-bit LPDDR5, 51GB/s | 8GB moduleSUPER: 8GB 128-bit LPDDR5, 102GB/s
PCIe*1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint)
USB*3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0
CSI CameraUp to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
Video Decode1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Display1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Networking1x GbE
Dimensions69.6 mm x 45 mm 260-pin SO-DIMM connector
GPU Frequency1020MHz (Max)
CPU Frequency1.7GHz (Max)
After you order

What happens next

Fast dispatch

In-stock hardware ships from San Francisco in ~48 hours; custom builds run 2–4 weeks.

Warranty & support

Every order includes warranty coverage and a direct line to our robotics engineers.

Onboarding

We help you go from procurement to first successful run with setup and integration support.
