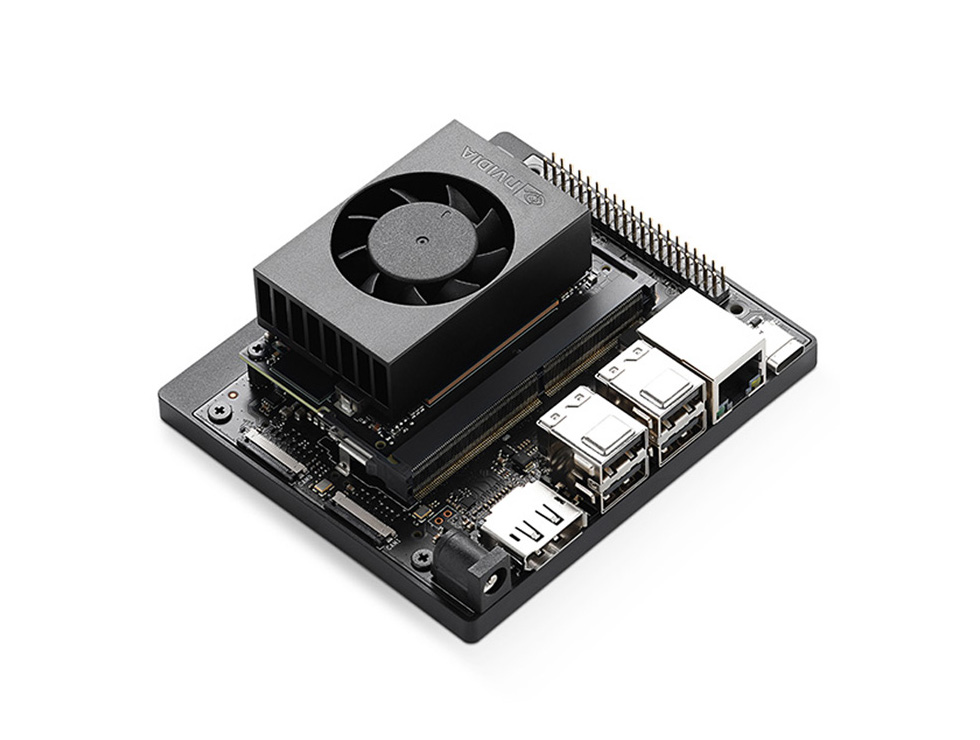

Waveshare Jetson Orin Nano Super Dev Kit
Waveshare

Waveshare Jetson Orin Nano Super Dev Kit

$400.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

Waveshare Jetson Orin Nano Super Dev Kit from Waveshare is a compute platform designed for robotics teams that need dependable hardware. N-VIDIA Jetson Orin Nano Super AI Development Kit for Embedded and Edge Systems, with 8GB Memory Jetson Orin Nano Module N-VIDIA Jetson Orin Nano Super AI Development Kit for Embedded and Edge Systems, with 8GB Memory Jetson Orin Nano Module In accordance with applicable export control laws and regulations, NVIDIA prohibits the sale of this product and its associated kits and modules in any form to Cuba, Iran, North Korea, Syria, the Crimea region, the Donetsk and Luhansk regions of Ukraine, Russia, Belarus, and any entities on the Entity List. (Countries or regions are subject to change based on updates or revisions to export control regulations

Delivery / Pickup Options
Order summaryUSD
Merchandise$400.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$68.00
Estimated total before tax$468.00

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

0.3 kg
Net weight
100 × 79 × 21 mm
Dimensions
7 W | 15 W | 25 W
Power

All Specifications

BrandWaveshare
CategoryCompute Platform
AvailabilityBackorder
Net weight0.3 kg
Dimensions100 × 79 × 21 mm
Core ModuleJetson Orin Nano 8GB (SUPER)
AI Performance67 TOPS (sparse) 33 TOPS (dense)
GPUN-VIDIA Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU6-core Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory8GB 128-bit LPDDR5, 102 GB/s
StorageSD card slot, access to external NVMe via M.2 Key M interface
PCIeM.2 Key M slot with ×4 PCIe Gen3 M.2 Key M slot with ×2 PCIe Gen3 M.2 Key E slot
USB*USB Type-A: 4 × USB 3.2 Gen2 USB Type-C (UFP)
CSI Camera2 × MIPI CSI-2 camera interface
Video Decoding1 × 4K60 (H.265) 2 × 4K30 (H.265) 5 × 1080p60 (H.265) 11 × 1080p30 (H.265)
Display Interface1 × DP interface 1.2 (+MST) interface
Other Interfaces40-pin expansion header (UART, SPI, I2S, I2C, GPIO) 12-pin button header 4-pin fan header TF card slot DC power jack
Networking1 × GbE connector
GPU Frequency1020MHz (Max)
CPU Frequency1.7GHz (Max)
After you order

What happens next

Fast dispatch

In-stock hardware ships from San Francisco in ~48 hours; custom builds run 2–4 weeks.

Warranty & support

Every order includes warranty coverage and a direct line to our robotics engineers.

Onboarding

We help you go from procurement to first successful run with setup and integration support.
