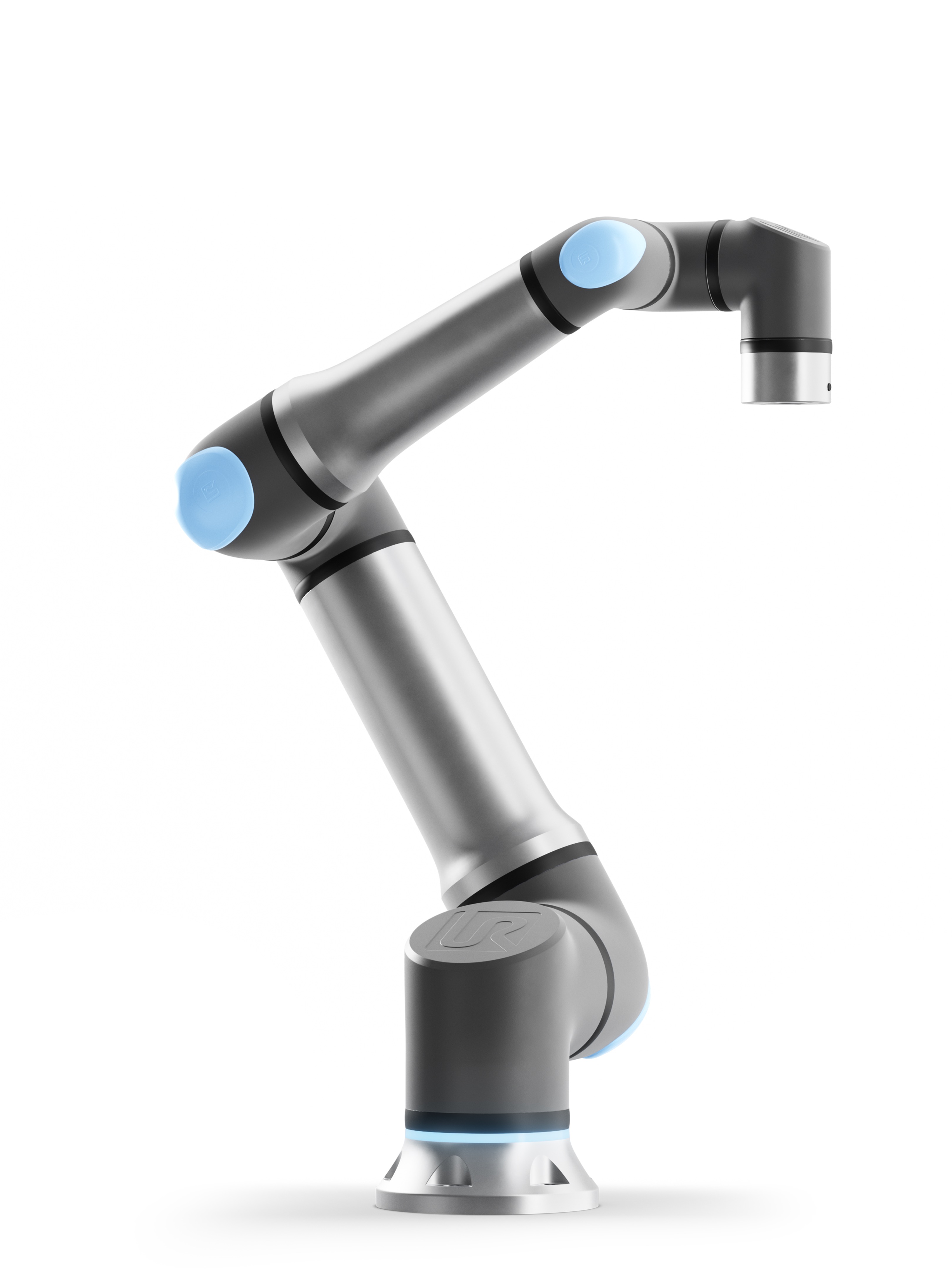

Universal Robots UR30
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
18 kg
Net weight
30-35 kg
Maximum Payload
1300 mm
Reach
6 (6 rotating joints)
Degrees Of Freedom
Typical 300 W / Max 750 W
Power Consumption
All Specifications
BrandUniversal Robots
CategoryRobotic Arm
AvailabilityBackorder
Net weight18 kg
Weight63.5 kg
FootprintØ 245 mm
Robot Weight63.5 kg (140 lbs)
IP RatingIP65 (dust-tight, water-jet protected)
Operating Temperature0 – 50 °C (32 – 122 °F)
Safety CertificationsISO 10218-1, ISO/TS 15066, EN ISO 13849-1 (Cat. 3, PLd)
Special FeaturesSteady Mode for high-torque screw driving · PolyScope GUI on 12″ touchscreen
Maximum Payload30-35 kg
Reach1300 mm
Max TCP Speed4 m/s
Repeatability±0.01 mm
Degrees Of Freedom6 (6 rotating joints)
Payload30 kg (66.1 lbs)
Power ConsumptionTypical 300 W / Max 750 W
