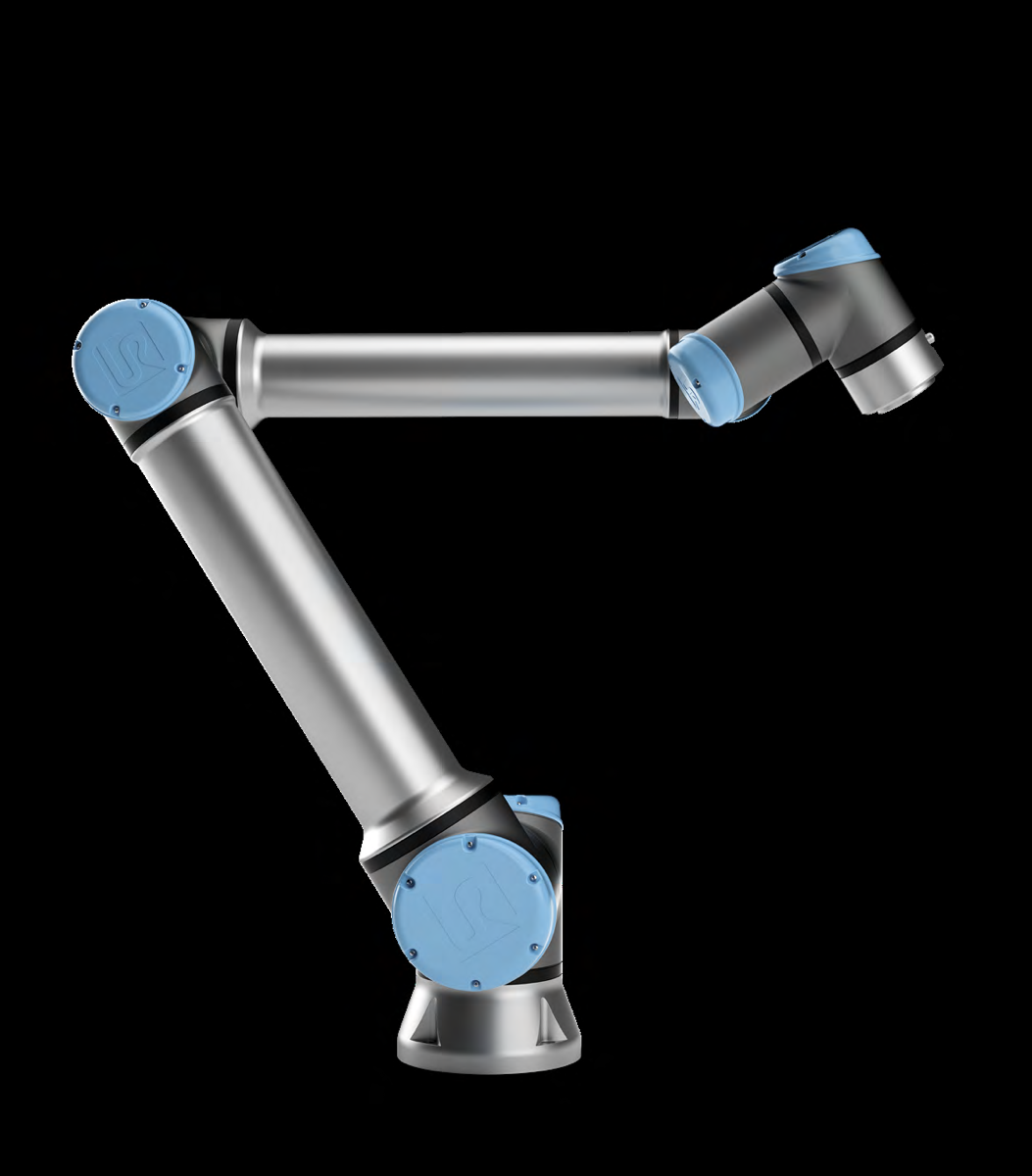

Universal Robots UR12e-1300 (formerly UR10e)
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
18 kg
Net weight
12.5 kg (27.6 lb)
Payload
1300 mm (51.2 in)
Reach
6 rotating joints
Degrees Of Freedom
12 V or 24 V
Tool Power
All Specifications
BrandUniversal Robots
CategoryRobotic Arm
AvailabilityBackorder
Net weight18 kg
FootprintØ190 mm (7.48 in)
Weight33.5 kg (73.9 lb)
Tool FlangeEN ISO 9409-1-50-4-M6
Tool I/O2 digital I/O (NPN/PNP), 2 analog inputs or 1 RS-485
ControllerCB7 with TP7 Core teach pendant for PolyScope X (base e-Series configuration also available)
ReplacesUR10e
Payload12.5 kg (27.6 lb)
Reach1300 mm (51.2 in)
Degrees Of Freedom6 rotating joints
Repeatability±0.05 mm
Max TCP Speed4 m/s
Tool ConnectorM8, 8-pin female
Tool Power12 V or 24 V
