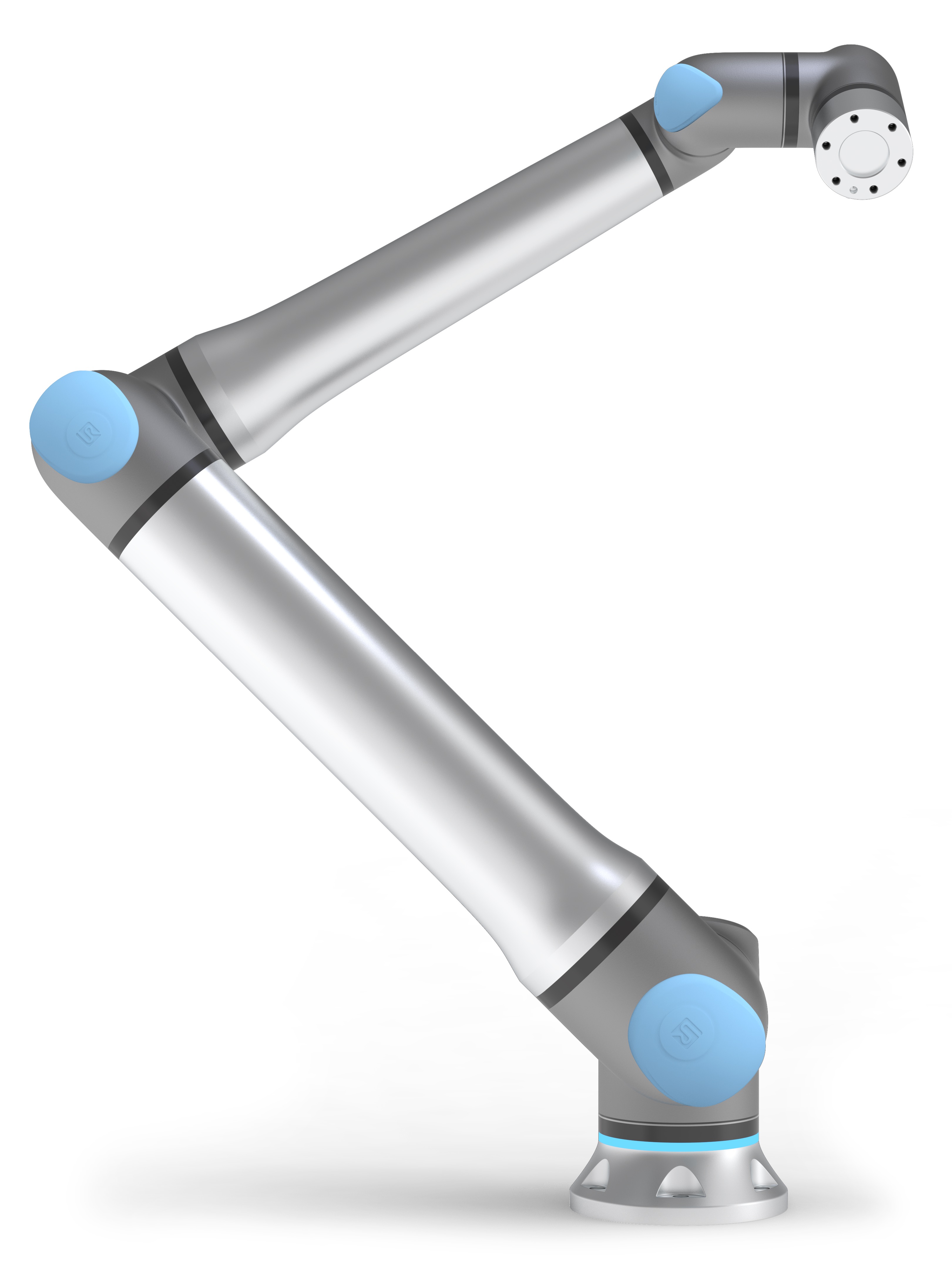

Universal Robots UR20
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
18 kg
Net weight
460 × 449 × 254 mm
Dimensions
20-25 kg
Maximum Payload
1750 mm
Reach
6 (6 rotating joints)
Degrees Of Freedom
Typical 350 W / Max 800 W
Power Consumption
All Specifications
BrandUniversal Robots
CategoryRobotic Arm
AvailabilityBackorder
Net weight18 kg
Dimensions460 × 449 × 254 mm
Weight64 kg
FootprintØ 245 mm
Robot Weight64 kg (141 lbs)
IP RatingIP65 (dust-tight, water-jet protected)
Operating Temperature0 – 50 °C (32 – 122 °F)
Safety CertificationsISO 10218-1, ISO/TS 15066, EN ISO 13849-1 (Cat. 3, PLd)
Control Box460 × 449 × 254 mm · PolyScope GUI on 12″ touchscreen
Maximum Payload20-25 kg
Reach1750 mm
Max TCP Speed5 m/s
Repeatability±0.01 mm
Degrees Of Freedom6 (6 rotating joints)
Payload20 kg (44.1 lbs)
Power ConsumptionTypical 350 W / Max 800 W
