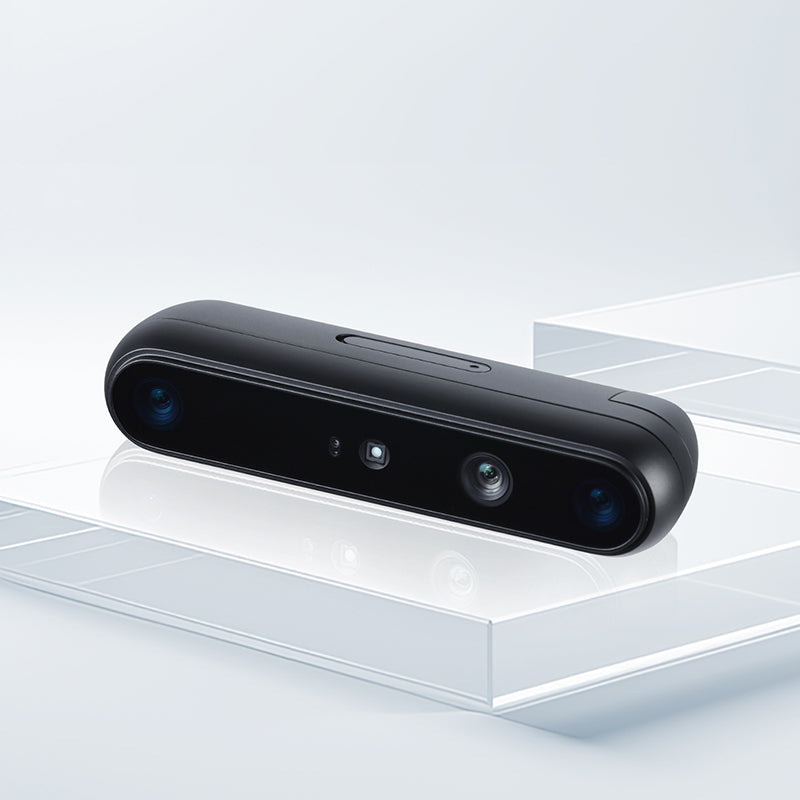

Orbbec Gemini 335Lg
$536.25In stock
Key Specifications
0.16 kg
Net weight
124 mm × 29 mm × 36 mm | 124 mm × 29 mm × 27 mm
Dimensions (W × H × D)
GMSL2: For Best Performance:DC 12V & ≥ 0.7A(Laser Energy Level: 6)For Default PerformanceDC 12V & ≥ 0.5A [3]（Laser Energy Level: 4）USB 3: DC 5V & ≥ 1.5A | For Best & Default Performance:DC 5V & ≥ 1.5A(Laser Energy Level: 6)
Power Supply
All Specifications
BrandOrbbec
CategoryCamera
AvailabilityIn stock
Net weight0.16 kg
Product NameGemini 335Lg | Gemini 335L
BasicUse Environment | Indoor & Outdoor
TechnologyActive & Passive Stereo
Baseline95mm
Data ConnectionGMSL2 FAKRA & USB 3 | USB 3
Camera ProtocolUSB & GMSL 2 | USB
UVC CompliantYes
SDKOrbbec SDK
DepthDepth Range [1] | 0.17m - 20m+
Ideal Range0.25m - 6m
Depth FOV (H × V)90° × 65° ± 3° @ 2m
Depth FOV (H × V) With D2CUp to: 90° x 65° ± 3° @ 2m
Spatial Precision [2]≤0.8% @ 2m≤≤1.6% @ 4m
Depth Sensor TechnologyGlobal Shutter
Depth FilterVisible+NIR-pass
IRIR Resolution@ Frame Rate | Up to：1280 x 800 @ 30fps848 x 480 @ 60fps
IR FOV (H × V)91° x 65° ± 3°
RGBRGB Resolution@ Frame Rate | Up to：1280 × 800 @ 60fps1280 x 720 @ 60fps
RGB Sensor FOV (H × V)94° × 68° ± 3°
RGB Sensor TechnologyGlobal Shutter
Built In SensorIMU | Support
GMSL2Average ≤ 3.8W (Peak ≤ 7.5W)USB 3: Average ≤ 3.0W (Peak ≤ 6W): Average ≤ 3.0 W (Peak ≤ 6W)
PhysicalMulti-camera Hardware Sync
8 Pin & FAKRA Z8-pin
Dimensions (W × H × D)124 mm × 29 mm × 36 mm | 124 mm × 29 mm × 27 mm
Weight164g ± 3g | 133g ± 3g
Ingress Protection [4]IP65
InstallationBottom：1 x 1/4-20 UNCBack：2 x M4
EnvironmentalAmbient Temperature
10°C 50°C @ 15fps 10°C 45°C @ 30/ 60fps-10°C - 50°C @ 15 / 30fps-10°C - 45°C @ 60fps
EMC RequirementEN61000-6-2EN61000-6-4 | EN55032: 2015+A1: 2020EN55032: 2017+A11: 2020
Vibration3.8Grms @ 5 ~ 2000 Hz,random, 2 hr/axis
OthersLifespan [5] | 5 years
Use EnvironmentIndoor & Outdoor
Depth Range0.17m - 20m+
Spatial Precision≤0.8% @ 2m; ≤1.6% @ 4m
Depth Resolution@ Frame RateUp to: 1280 x 800 @ 30fps848 x 480 @ 60fps
Depth Resolution @ Frame RateUp to: 1280 x 800 @ 30fps; 848 x 480 @ 60fps
ElectricalPower Consumption
Power SupplyGMSL2: For Best Performance:DC 12V & ≥ 0.7A(Laser Energy Level: 6)For Default PerformanceDC 12V & ≥ 0.5A [3]（Laser Energy Level: 4）USB 3: DC 5V & ≥ 1.5A | For Best & Default Performance:DC 5V & ≥ 1.5A(Laser Energy Level: 6)
