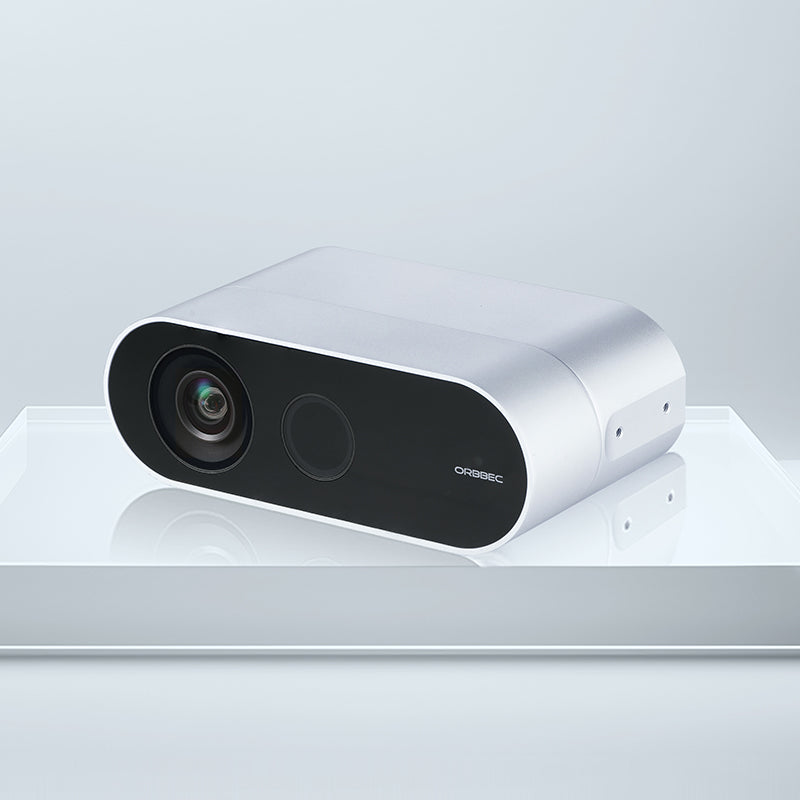

Orbbec Femto Bolt
$418.00In stock
Key Specifications
0.27 kg
Net weight
*115mm x 40mm x 65mm
Dimensions (W*H*D)
USB Type-C/DC 12/2A
Power Input
All Specifications
BrandOrbbec
CategoryCamera
AvailabilityIn stock
Net weight0.27 kg
Depth TechnologyTime of Flight
Wavelength850nm
Depth Range*0.25-5.46m (depending on depth mode)
Depth FOVH 120° V 120° (WFOV), H 75° V 65° (NFOV)
RGB FOVH 80° x V 51°
ProcessingHost computer
IMUSupported
Data ConnectionUSB 3.2 Type-C, Gen 1
TriggerSupported
Operating Environment10℃ - 25℃; Indoor; 8-90%RH (non-condensing)
SDK SupportOrbbec SDK
Data OutputPoint Cloud, Depth Map, IR & RGB
Dimensions (W*H*D)*115mm x 40mm x 65mm
Weight348g
InstallationBottom: ¼-20UNC Side: 4 x M2.5
Depth ProcessingAzure Kinect Developer Kit
Femto BoltFemto Mega
Location Of Raw To Depth ProcessingExternal, Host PC
External, Host PCBuilt-in NVIDIA® Jetson™ Nano
Depth Camera Operating ModesAzure Kinect Developer Kit | Femto Bolt / Femto Mega
NFOV Unbinned640x576 @ 5/15/25/30fps | 640x576 @ 5/15/25/30fps
NFOV 2x2 Binned (SW)320x288 @ 5/15/25/30fps | 320x288 @ 5/15/25/30fps
WFOV 2x2 Binned512x512 @ 5/15/25/30fps | 512x512 @ 5/15/25/30fps
WFOV Unbinned1024x1024 @ 5/15fps | 1024x1024 @ 5/15fps
Passive IR1024x1024 @ 5/15/25/30fps | 1024x1024 @ 5/15/25/30fps
Operating Depth RangeAzure Kinect Developer Kit | Femto Bolt / Femto Mega
Depth & IR Fo VAzure Kinect Developer Kit | Femto Bolt / Femto Mega
WFOV Binned & Unbinned120°x120° | 120°x120°
Color Camera CharacteristicsAzure Kinect Developer Kit | Femto Bolt / Femto Mega
Pixel Pitch1.25 um | 1.45 um
Sensor Size5.120x3.132 mm | 5.568x3.840mm
F Number2.2 | 2.7
Aspect Ratio4:3 | 16:9
Color Camera Operating ModesAzure Kinect Developer Kit | Femto Bolt / Femto Mega
3840x21605/15/30fps MJPEG | 5/15/25fps MJPEG/YUY2/H.264/H.265
2560x14405/15/30fps MJPEG | 5/15/25fps MJPEG/YUY2/H.264/H.265
Depth Resolution/FPSUp to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)
RGB Resolution/FPSUp to 3840X2160@30fps
Power InputUSB Type-C/DC 12/2A
Power Consumption4.35W Average
