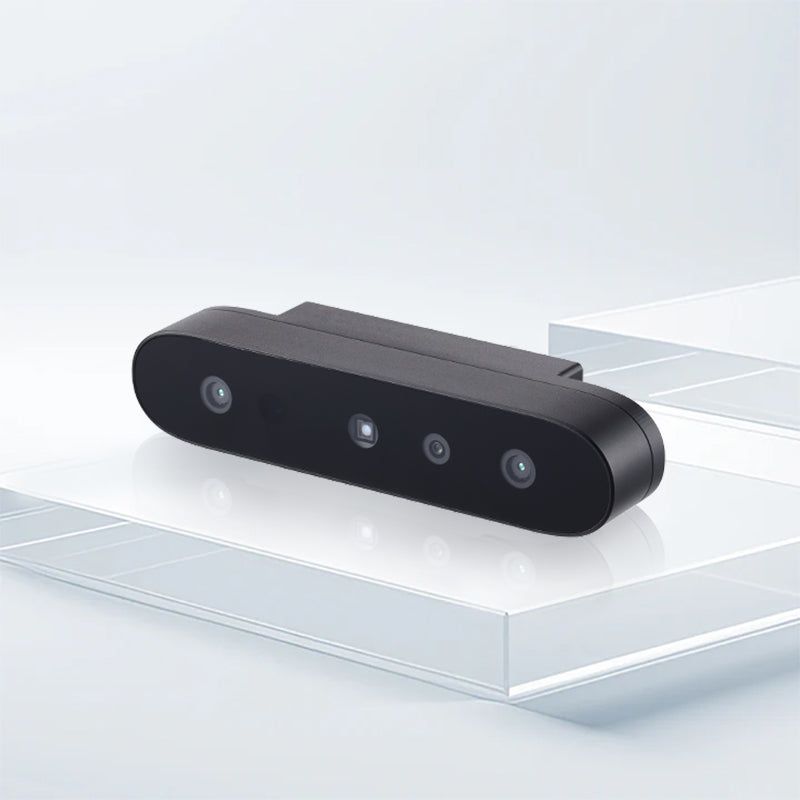

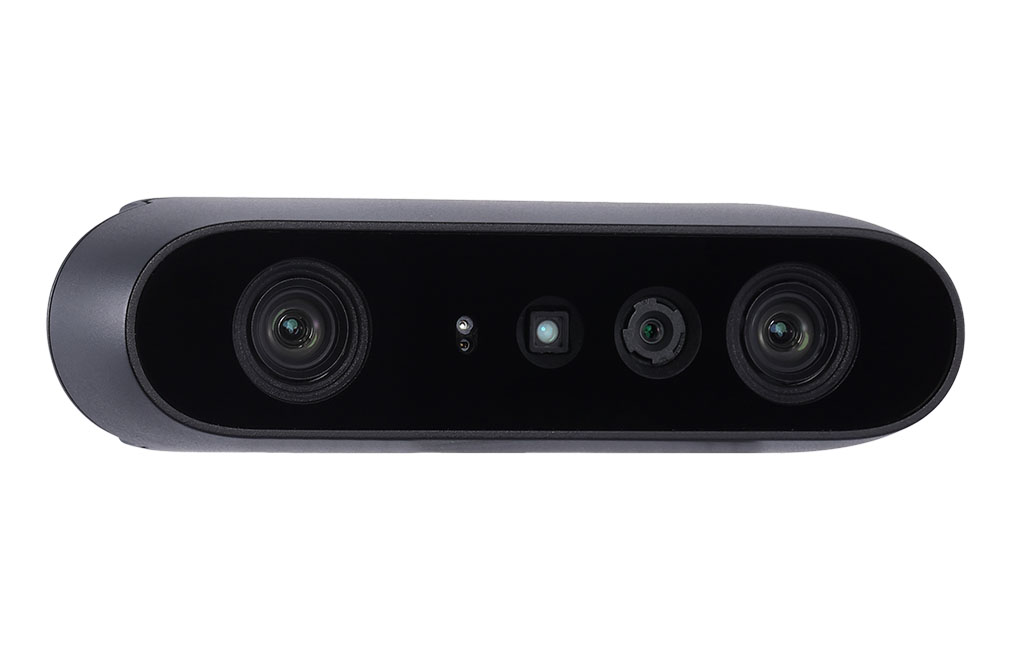

Orbbec Gemini 2 Depth Camera

Name: Orbbec Gemini 2 Depth Camera
Brand: Orbbec
Availability: InStock

Orbbec Gemini 2 structured light depth camera. 1280×800 depth at 30fps, 0.1–8m range, 87°×58° FOV. RGB + depth + IR. USB-C. OrbbecSDK and OpenNI2 compatible. Available in standard and long-range (Gemini 2L) variants.

Configuration

Request a Quote

contact@roboticscenter.ai

Technical Specifications

Orbbec Gemini 2 Depth Camera Specs

Depth Technology	Structured light (IR pattern)
Depth Resolution	1280×800 at 30fps
Depth Range	0.1–8m (standard) / 0.6–9m (Gemini 2L long range)
RGB Resolution	1920×1080 at 30fps
FOV (Depth)	87°×58°
Interface	USB-C (USB 3.0)
Dimensions	99×26×31mm
Weight	195g
SDK	OrbbecSDK, OpenNI2, ROS 1 & ROS 2
Variants	Gemini 2 (standard), Gemini 2L (long range 0.6–9m)
Price	Contact for pricing
