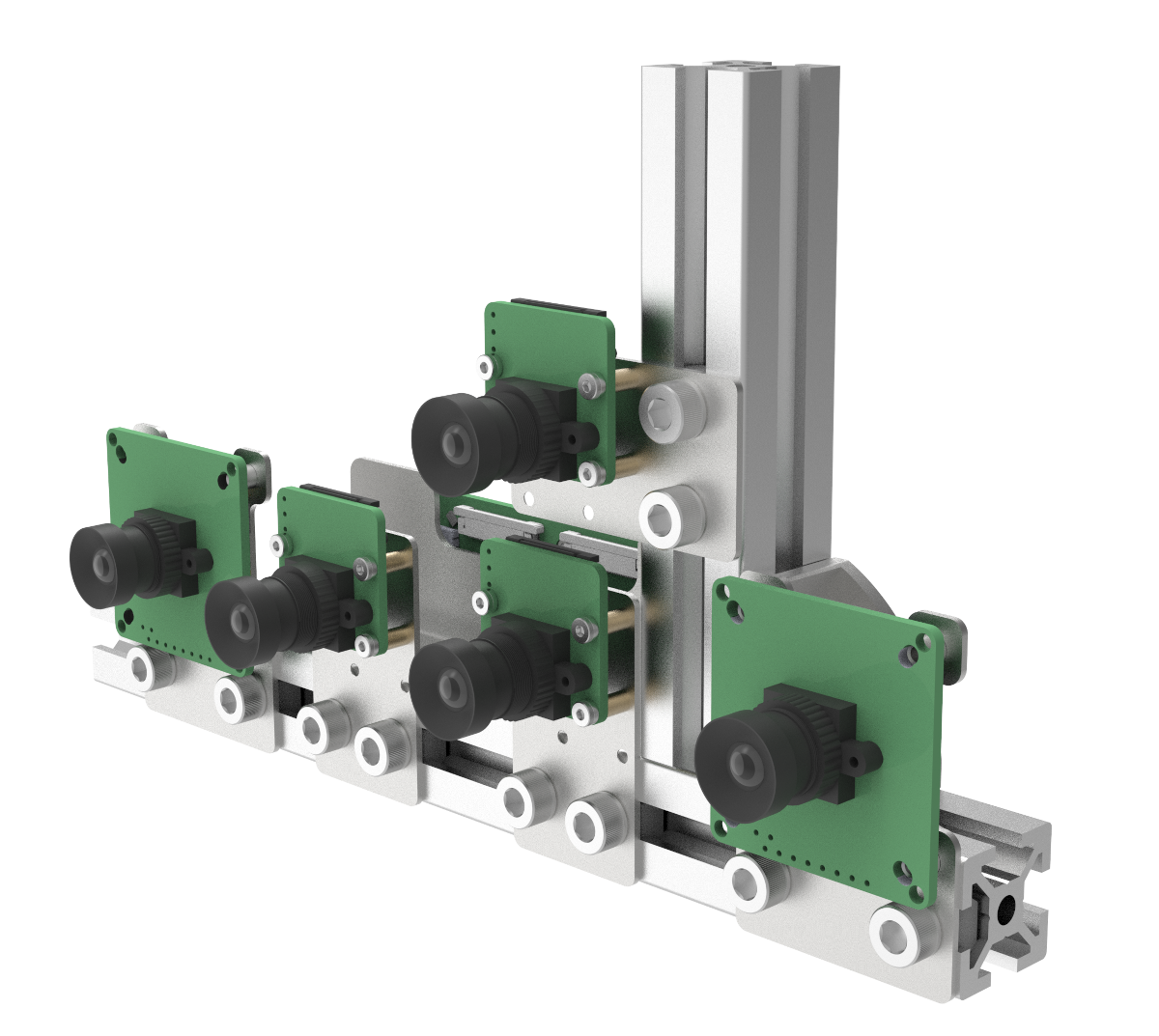

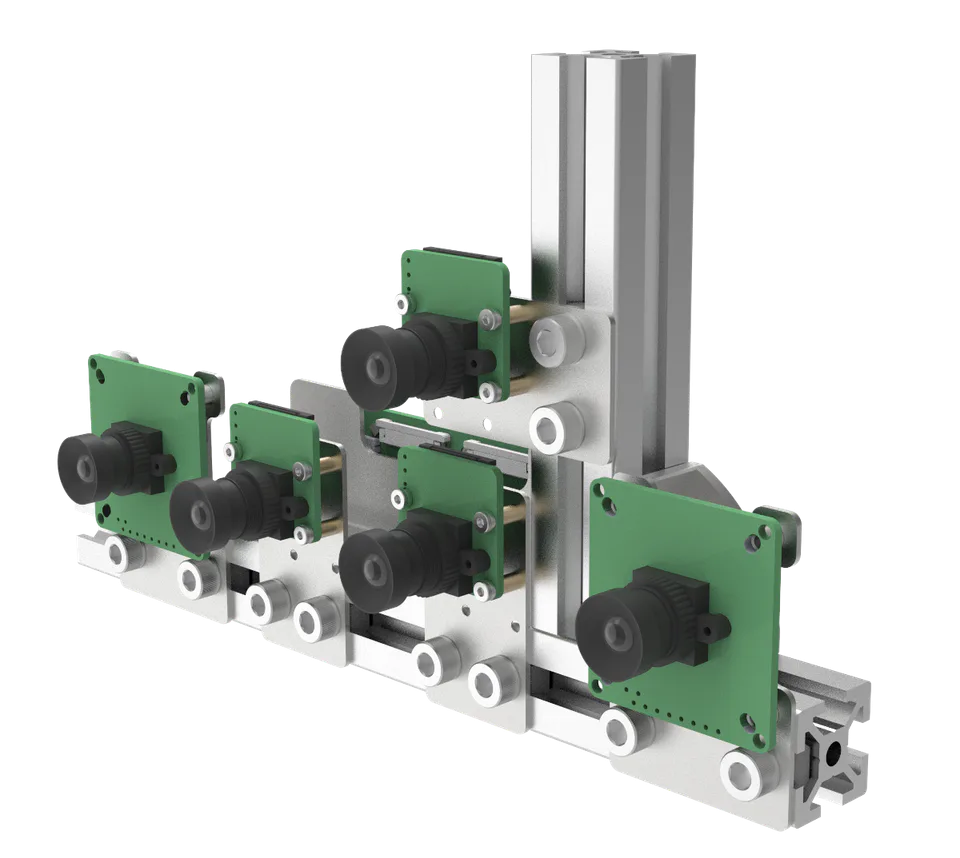

OAKChina OAK-VIO-KIT Camera
$480.00In stock
Key Specifications
0.3 kg
Net weight
12 mm (W) × 99.4 mm (L) × 8.6 mm (H)
Dimensions
5 V, <0.2 A (<1 W)
Power Consumption
All Specifications
BrandOAKChina
CategoryCamera
AvailabilityIn stock
Net weight0.3 kg
Baseline84 mm
Stereo CameraGlobal shutter, 120° FOV, distortion-free
IMU6-axis, 1000 Hz
SLAM6 DoF
6Do F Frame Rate30 FPS to 1000 FPS
Static Jitter<1 mm
Relocalization Time<1 s
Timestamp SynchronizationHardware synchronization
Data InterfaceFPC interface, USB 3.0
Operating Temperature-20°C to 50°C
Supported Operating SystemsWindows / Android / Linux / ROS
Application ScenariosIndoor and outdoor (depending on the application scenario and algorithm requirements)
Dimensions12 mm (W) × 99.4 mm (L) × 8.6 mm (H)
Weight13.4 g
V SLAM Absolute AccuracyCentimeter-level accuracy; approximately 1% drift, reduced to approximately 0.3% with loop closure/cloud mapping
Localization Latency1 ms
Power Consumption5 V, <0.2 A (<1 W)
Power SupplyFPC interface
