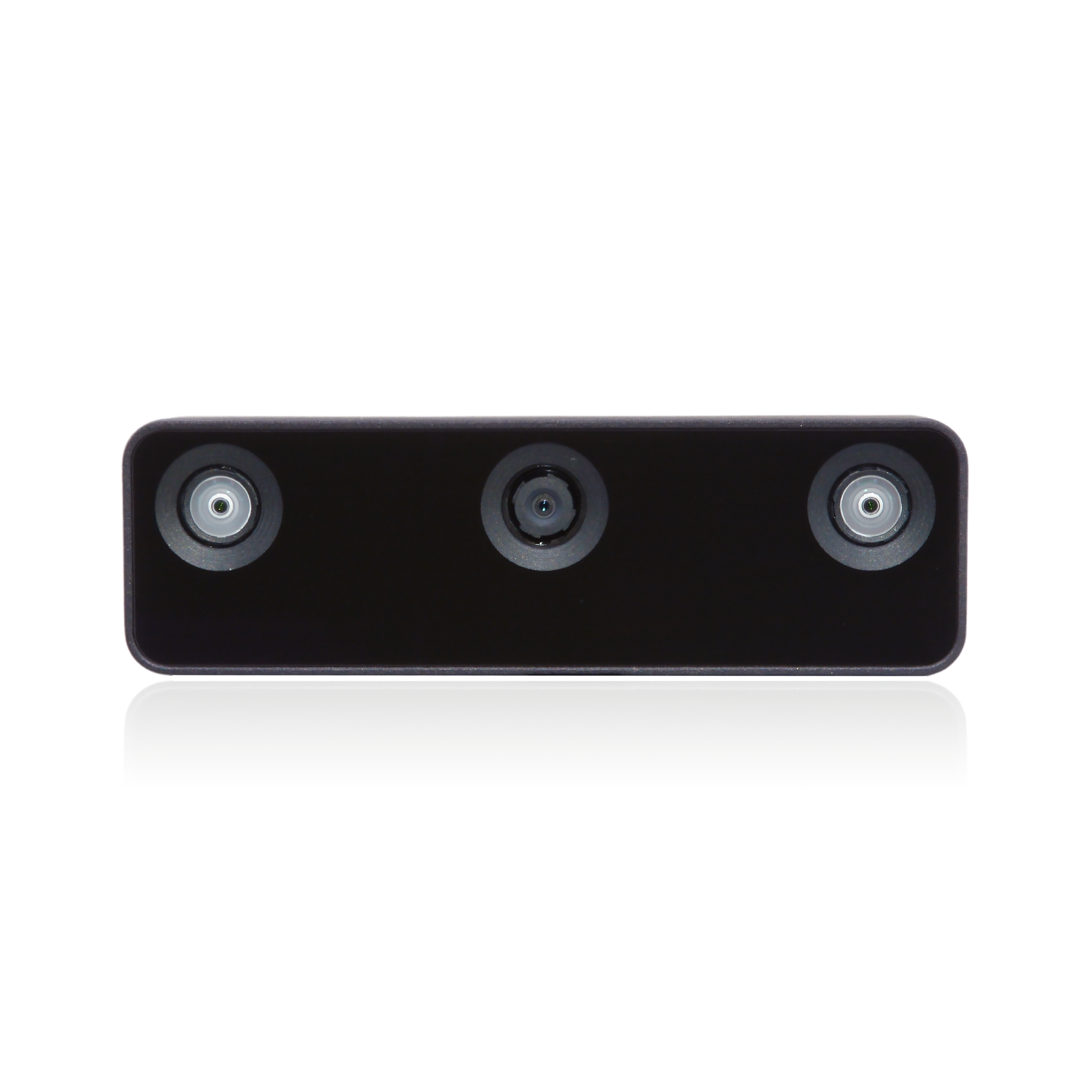

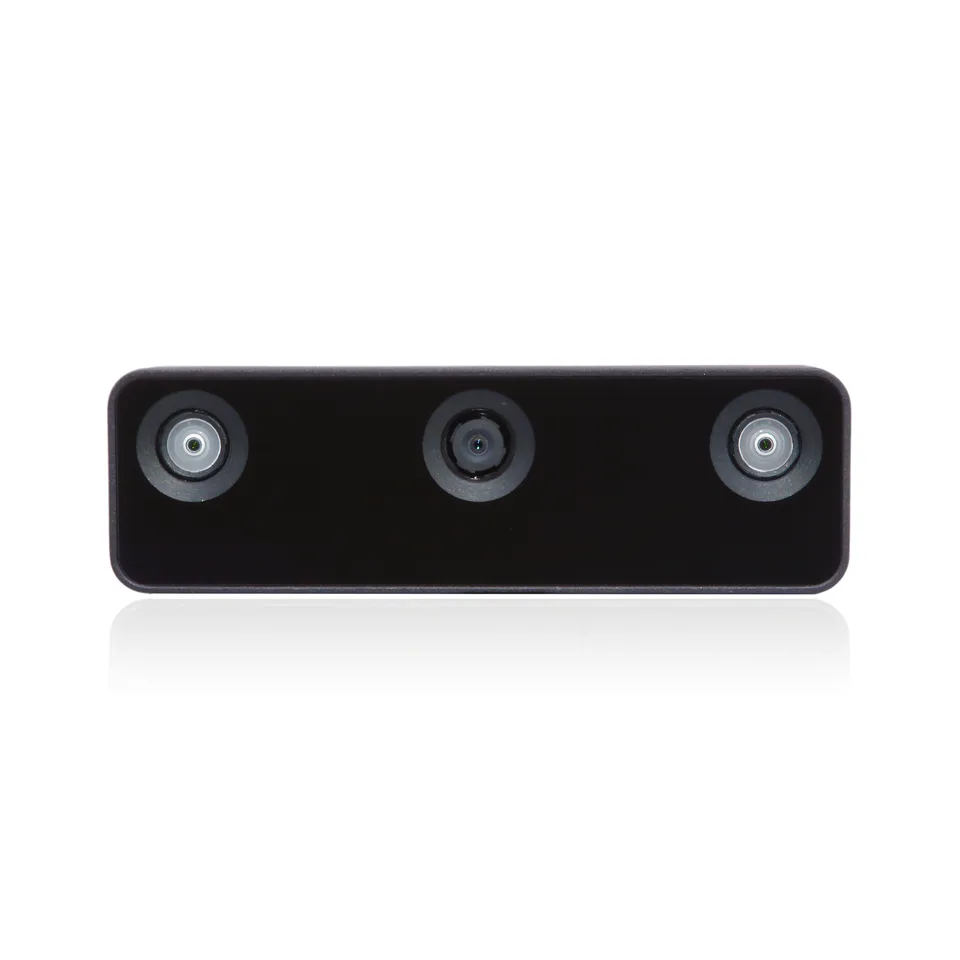

OAKChina OAK-D-W Camera
$1,050.00Backorder
Key Specifications
0.3 kg
Net weight
All Specifications
BrandOAKChina
CategoryCamera
AvailabilityBackorder
Net weight0.3 kg
ParameterRGB Camera | RGB Camera (Global Shutter) | Stereo Camera
Image SensorIMX378 | OV9782 | OV9282
DFOV / HFOV / VFOV120° D / 95° H / 74° V | 150° D / 128° H / 80° V | 150° D / 128° H / 80° V
Maximum Frame Rate60 FPS | 143 FPS | 255 FPS
Effective Focal Length (EFL)2.75 mm | 1.69 mm | 1.69 mm
Aperture (F Number)1.8 ± 5% | 2.0 ± 5% | 2.0 ± 5%
Focus RangeFF: 60 cm to infinity | FF: 18 cm to infinity | FF: 18 cm to infinity
Spectral RangeVisible light | Visible light | Visible light
Optical Format1/2.3 in. | 1/4 in. | 1/4 in.
Pixel Size1.55 µm × 1.55 µm | 3 µm × 3 µm | 3 µm × 3 µm
Shutter TypeRolling shutter | Global shutter | Global shutter
Resolution12 MP (4056 × 3040) | 1 MP (1280 × 800) | 1 MP (1280 × 800)
