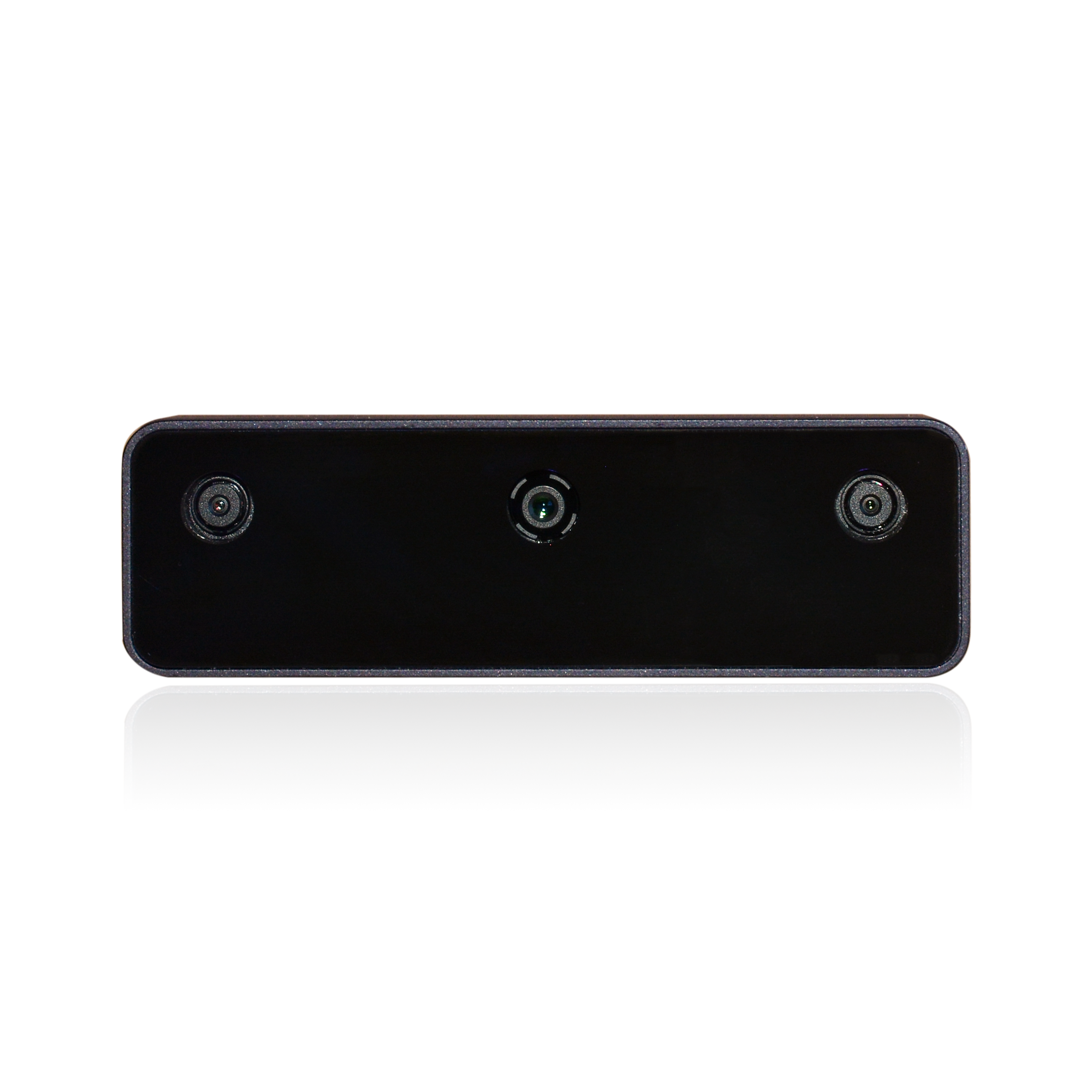

OAKChina OAK-D-S2 Camera
$750.00Backorder
Key Specifications
0.3 kg
Net weight
All Specifications
BrandOAKChina
CategoryCamera
AvailabilityBackorder
Net weight0.3 kg
ParameterRGB Camera (AF) | RGB Camera (FF) | Stereo Camera
Image SensorIMX378 | IMX378 | OV9282
DFOV / HFOV / VFOV78° D / 66° H / 54° V | 82° D / 69° H / 55° V | 89.5° D / 80° H / 55° V
Maximum Frame Rate60 FPS | 60 FPS | 255 FPS
Effective Focal Length (EFL)4.81 mm | 4.81 mm | 2.35 mm
Aperture (F Number)1.8 ± 5% | 1.8 ± 5% | 2.0 ± 5%
Focus RangeAF: 8 cm to infinity | FF: 50 cm to infinity | FF: 19.6 cm to infinity
Optical Format1/2.3 in. | 1/2.3 in. | 1/4 in.
Pixel Size1.55 µm × 1.55 µm | 1.55 µm × 1.55 µm | 3 µm × 3 µm
Shutter TypeRolling shutter | Rolling shutter | Global shutter
Resolution12 MP (4032 × 3040) | 12 MP (4032 × 3040) | 1 MP (1280 × 800)
