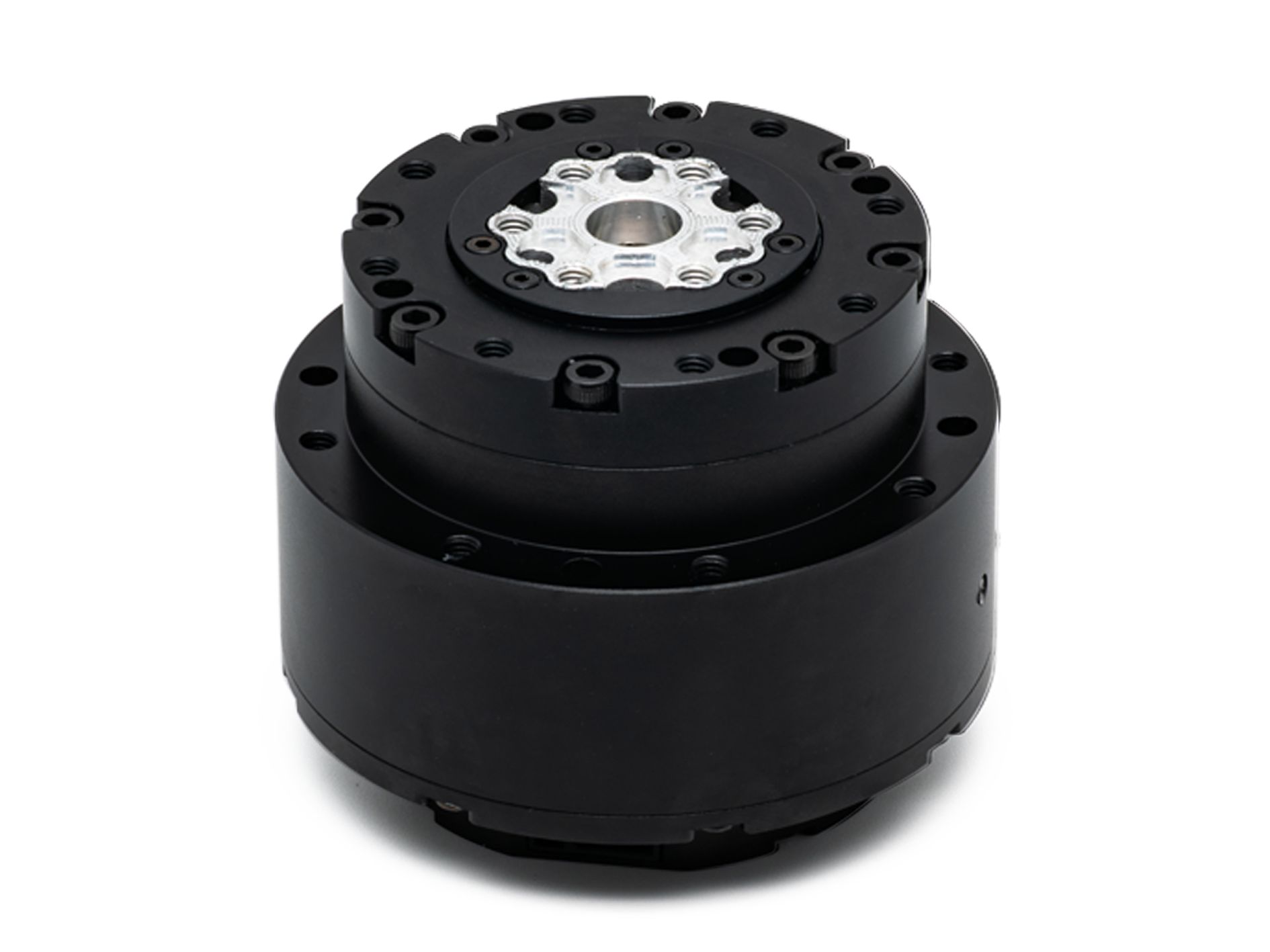

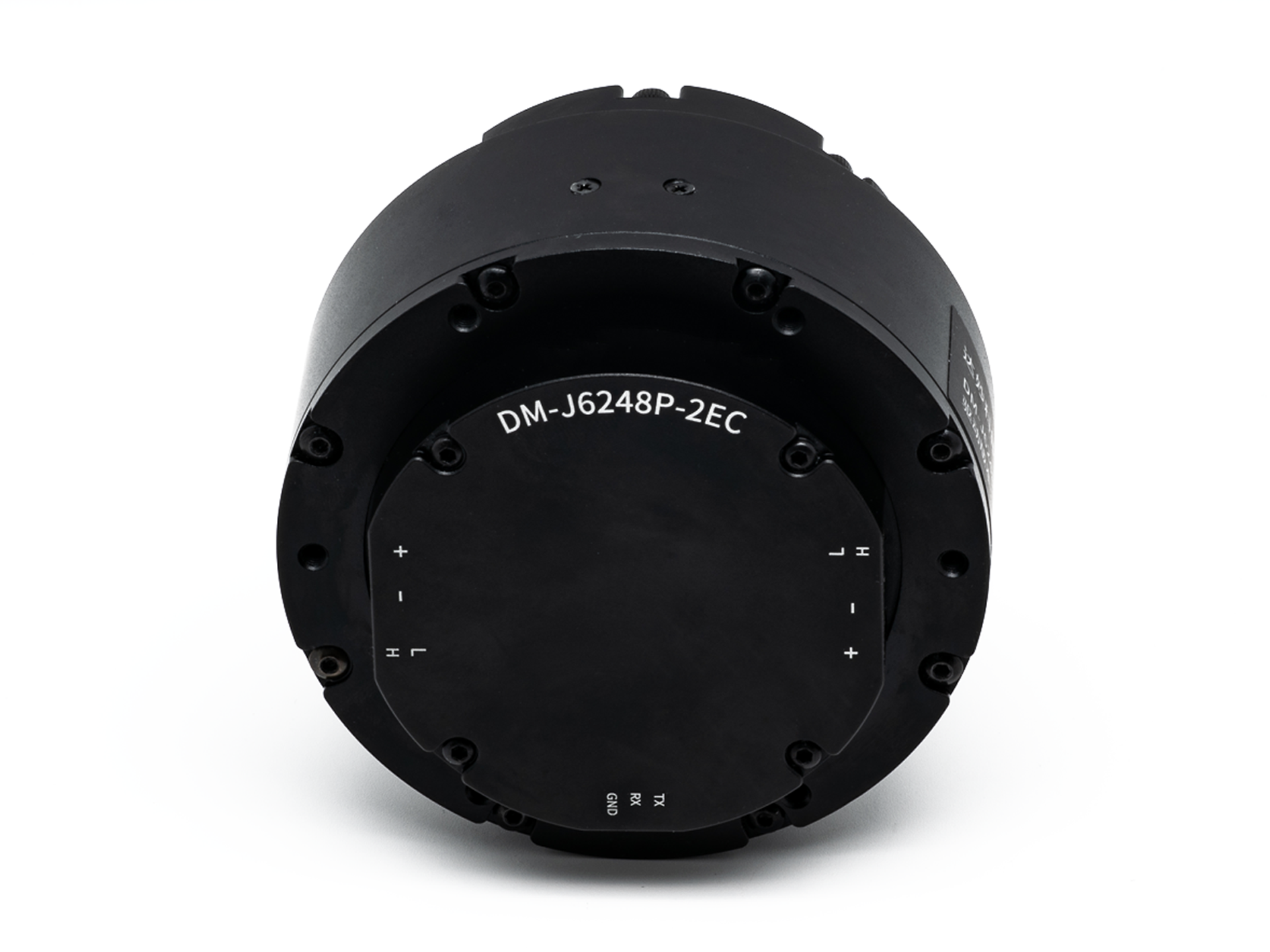

Damiao DM-J6248-2EC
$295.00In stock
Key Specifications
97 N·m
Peak Torque
24 V / 48 V
Rated Voltage
60 rpm
No Load Max Speed
0.628 kg
Net weight
30 N·m
Rated Torque
All Specifications
BrandDAMIAO
CategoryActuator & Motor
AvailabilityIn stock
Net weight0.628 kg
ModelDM-J6248-2EC
Reduction Ratio48:1
Pole Pairs14
Phase Inductance85 µH (@25°C)
Phase Resistance0.17 Ω (@25°C)
Outer Diameter76 mm
Length76 mm
Width76 mm
Height62.5 mm
Motor Weightapprox. 628 g
Encoder Count2
Encoder TypeMagnetic Encoder (Single-turn)
Control InterfaceCAN @ 5 Mbps (Max)
Tuning InterfaceUART @ 921600 bps
Rated Torque30 N·m
Peak Torque97 N·m
Rated Speed40 rpm
No Load Max Speed60 rpm
Encoder Resolution16-bit
Rated Voltage24 V / 48 V
Rated Phase Current11.3 A / 7 A @ 24 V; 11.3 A / 3.7 A @ 48 V
Peak Phase Current38.7 A / 16 A @ 24 V; 38.7 A / 8 A @ 48 V
