Damiao DM-H3510
DAMIAO

Damiao DM-H3510

$50.00In stock
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

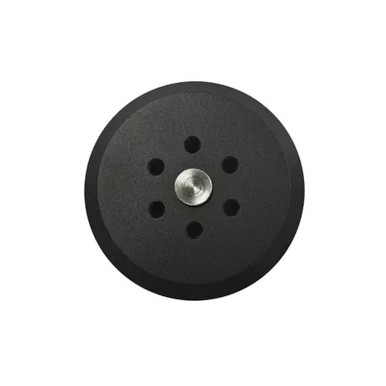

DAMIAO DM-H3510 Brushless DC Motor. Rated torque 0.18Nm；Peak torque 0.45Nm。 Integrated motor and driver design with a compact, highly integrated structure. CAN bus feedback for motor speed, position, torque, motor temperature, and other parameters. Visual parameter tuning via host software with simple configuration. Supports CAN FD with maximum baud rate up to 5 Mbps.

Delivery / Pickup Options
Order summaryUSD
Merchandise$50.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.38
Estimated total before tax$115.38

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

0.45 N.M
Peak Torque
24 V
Nominal Voltage
1.5 kg
Net weight
0.18 N.M
Nominal Torque

All Specifications

BrandDAMIAO
CategoryActuator & Motor
AvailabilityIn stock
Net weight1.5 kg
ModelDMH3510
Reduction Ratio1：1
Pole Pairs7
Phase Inductance1.67μH
Phase Resistance2.25Ω
Outer Diameter42mm
Height31.5mm
Motor Weight116g
Encoder TypeMagnetic Encoder
Control InterfaceCAN@1Mbps、CANFD@5Mbps
Configuration InterfaceUART@921600bps
Nominal Torque0.18 N.M
Peak Torque0.45 N.M
Nominal Speed500rpm
Max. No Load Speed1800rpm
