Damiao DM-J4310-2EC-48V
DAMIAO

Damiao DM-J4310-2EC-48V

$125.00In stock
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

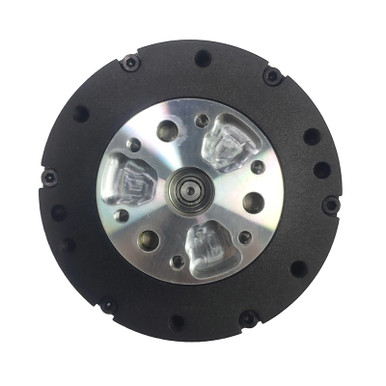

DM-J4310-2EC V1.1 MIT-Driven Brushless Servo Joint Motor. Rated torque 3Nm；Peak torque 7Nm。 Dual encoders provide single-turn absolute position on the output shaft; absolute position is retained even after power loss. Integrated motor and driver design with a compact, highly integrated structure. Supports visual debugging via host software and firmware upgrades. CAN bus feedback for motor speed, position, torque, motor temperature, and other parameters.

Delivery / Pickup Options
Order summaryUSD
Merchandise$125.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.94
Estimated total before tax$190.94

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

12.5 N·m
Peak Torque
48 V
Rated Voltage
450 rpm
No Load Max Speed
0.325 kg
Net weight
3.5 N·m
Rated Torque

All Specifications

BrandDAMIAO
CategoryActuator & Motor
AvailabilityIn stock
Net weight0.325 kg
ModelDM-J4310-2EC V1.2
Reduction Ratio10:1
Pole Pairs14
Phase Inductanceapprox. 320 µH
Phase Resistanceapprox. 580 mΩ
Outer Diameter57 mm
Length57 mm
Width57 mm
Height46 mm
Motor Weightapprox. 325 g
Encoder Count2
Encoder TypeMagnetic Encoder (Single-turn)
Control InterfaceCAN @ 1 Mbps
Tuning InterfaceUART @ 921600 bps
Rated Torque3.5 N·m
Peak Torque12.5 N·m
Rated Speed120 rpm
No Load Max Speed450 rpm
Encoder Resolution16-bit
Product FAQ

Questions about Damiao DM-J4310-2EC-48V

Purchasing, compatibility, and support information from Robotics Center.

How much does the Damiao DM-J4310-2EC cost?

The DM-J4310-2EC 48V module is listed at $125 from Robotics Center. Volume pricing is available; tell us the quantity and we will quote it.

Is the DM-J4310-2EC in stock?

This module is currently on backorder rather than on the shelf, so it ships after the next inbound batch. Ask us for the current lead time before you plan around it — we will give you the date we actually expect, not a default.

Can I buy Damiao motors in the United States?

Yes. Robotics Center stocks Damiao modules for US buyers and ships from San Francisco, which avoids arranging import yourself. Shipping is calculated from your delivery address at checkout.

Are Damiao motors returnable?

No. Sales are final. For a first build we would rather talk through torque, voltage and the CAN setup with you beforehand than have you order the wrong module.
