Orbbec

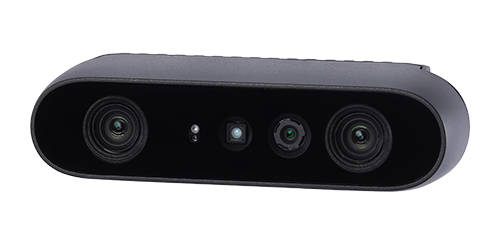

Orbbec Gemini 2
Orbbec Gemini 2 structured light depth camera. 1280×800 depth at 30fps, 0.1–8m range, 87°×58° FOV. RGB + depth + IR. USB-C. OpenNI2 and OrbbecSDK compatible. Ideal for robotic manipulation, 3D scanning, and object detection.
$234.00Backorder
1
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
0.195 kg
Net weight
90mm x 25mm x 30mm
Dimensions (W*H*D)
USB 3.0 Type-C
Power Input
All Specifications
BrandOrbbec
CategoryCamera
AvailabilityBackorder
Net weight0.195 kg
Depth TechnologyActive Stereo IR
Wavelength850nm
Depth Range*0.15-10m
Depth FOVH91° V66°
RGB FOVH86° V55°
ProcessingOrbbec ASIC
IMUSupported
Data ConnectionUSB 3.0 Type-C
TriggerSupported
Operating Environment0℃ - 40℃; Indoor/Semi-Outdoor; 5%-95%RH
SDK SupportOrbbec SDK
Data OutputPoint Cloud, Depth Map, IR & RGB
Dimensions (W*H*D)90mm x 25mm x 30mm
Weight98g
InstallationBottom: ¼-20UNC Back: 2 x M3
ParametersGemini 2 | Femto Mega
Gemini 2Femto Mega
Depth Resolution/FPSUp to 1280X800@30fps
RGB Resolution/FPSUp to 1920X1080@30fps
Power InputUSB 3.0 Type-C
Power ConsumptionAverage <2.5W
