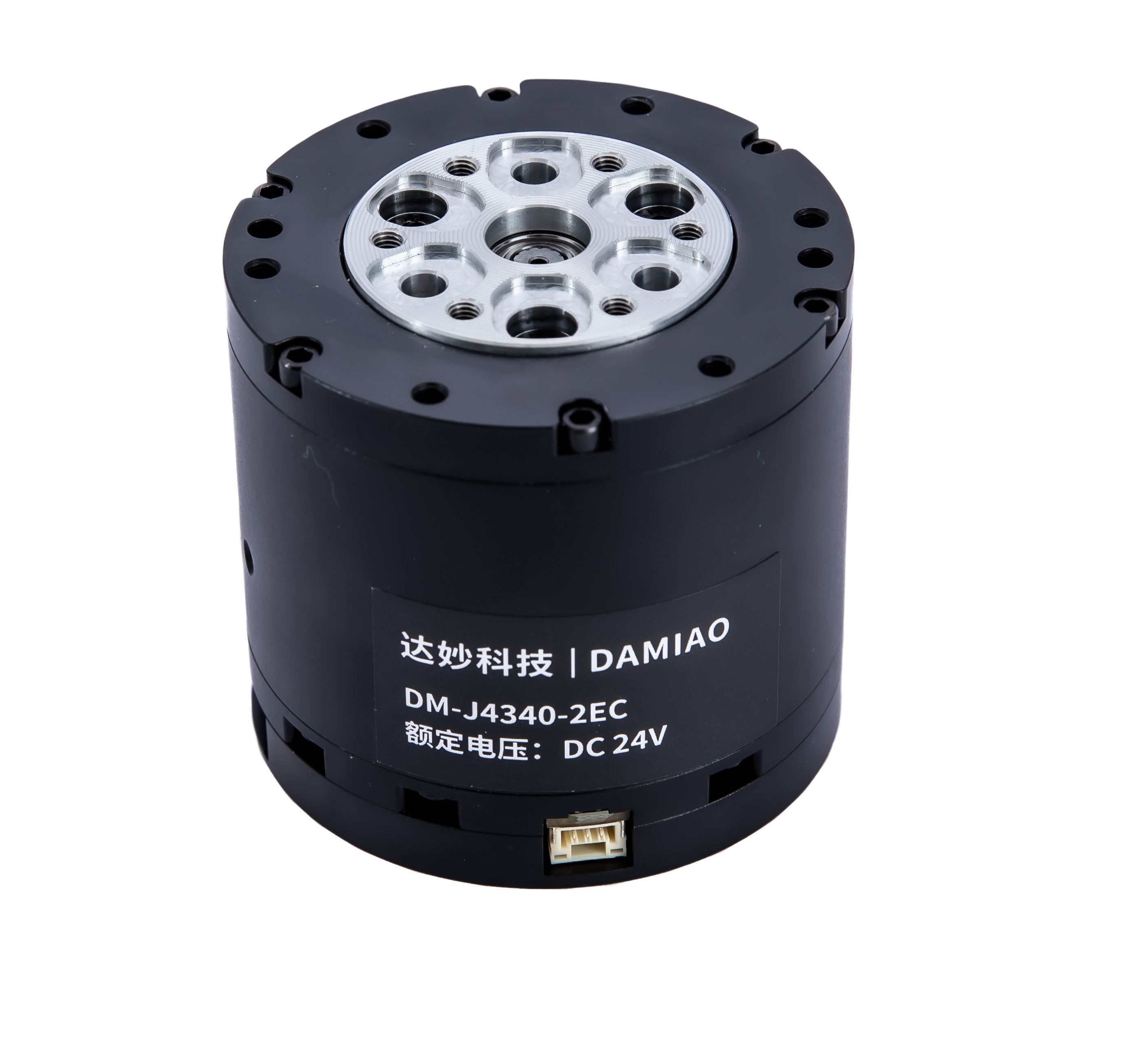

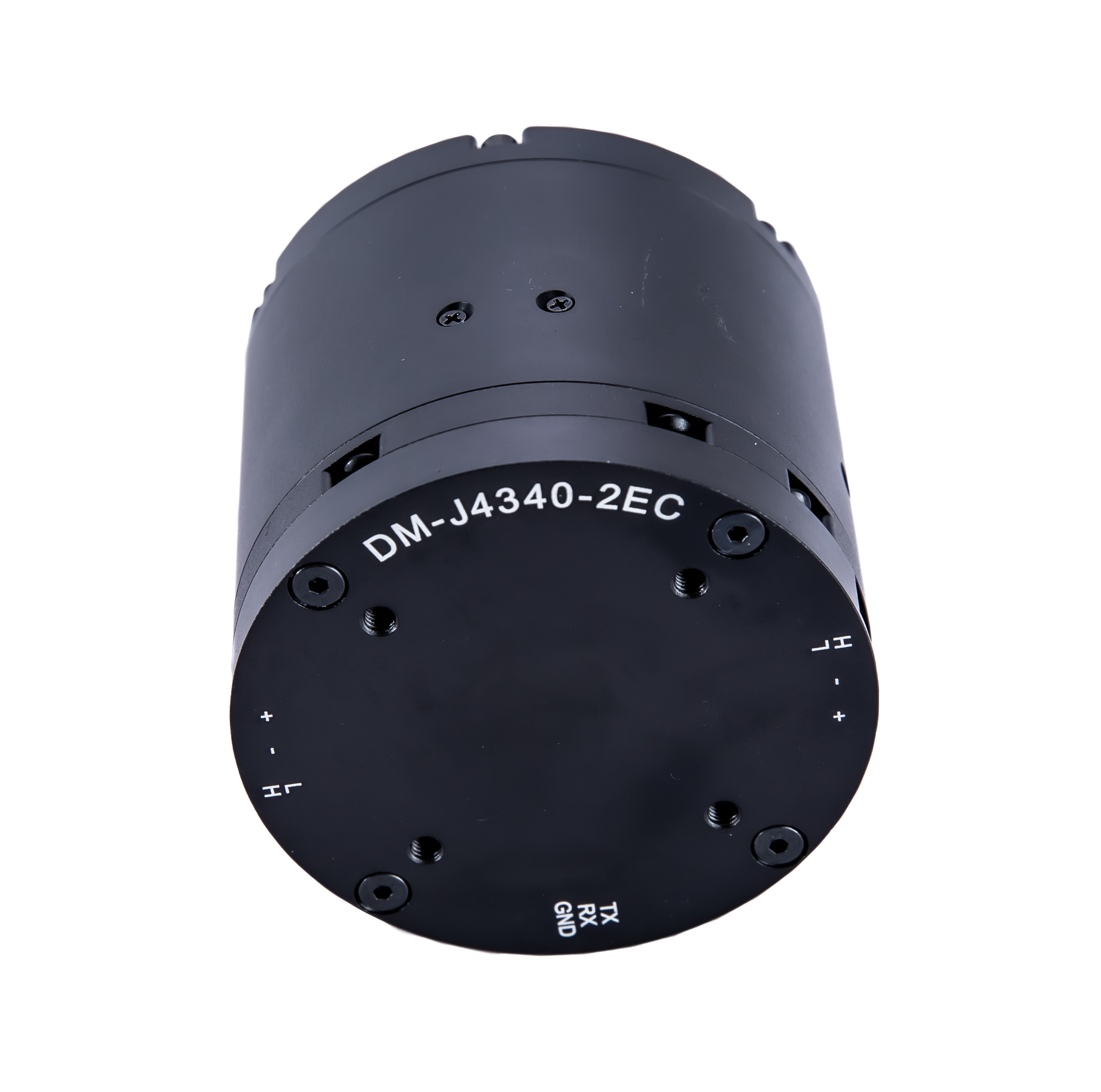

Damiao DM-J4340-2EC-24V
US$215.00재고 있음
주요 사양
40 N·m
Peak Torque
24 V
Rated Voltage
56 rpm
No Load Max Speed
approx. 362 g
Motor Weight
12 N·m
Rated Torque
전체 사양
브랜드DAMIAO
카테고리액추에이터 및 모터
재고 상태재고 있음
순중량0.362 kg
ModelDM-J4340-2EC V1.1
Reduction Ratio40:1
Pole Pairs14
Phase Inductance290 µH (@25°C)
Phase Resistance0.72 Ω (@25°C)
Outer Diameter57 mm
Length57 mm
Width57 mm
Height53.3 mm
Motor Weightapprox. 362 g
Encoder Count2
Encoder TypeMagnetic Encoder (Single-turn)
Control InterfaceCAN @ 1 Mbps
Tuning InterfaceUART @ 921600 bps
Rated Torque12 N·m
Peak Torque40 N·m
Rated Speed36 rpm
No Load Max Speed56 rpm
Encoder Resolution16-bit
Rated Voltage24 V
Rated Phase Current4.11 A / 3.1 A
Peak Phase Current19.85 A / 16.00 A
