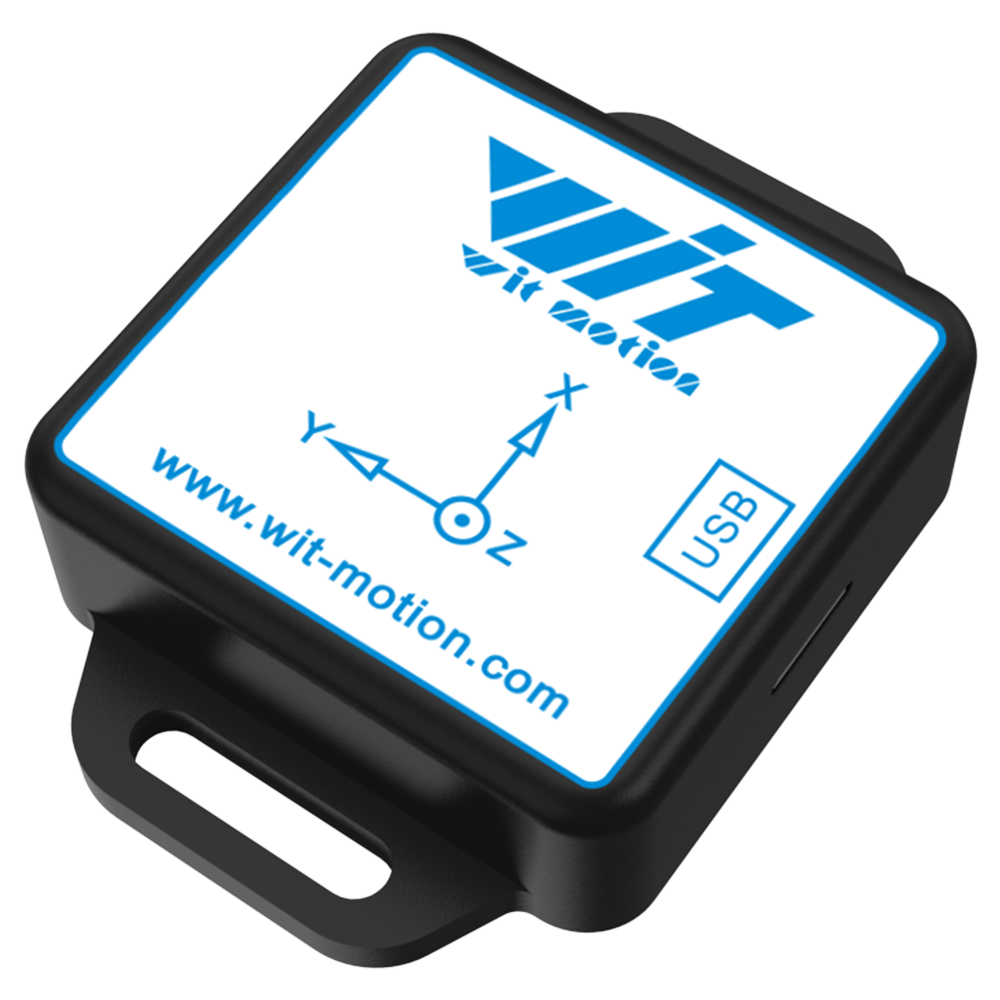

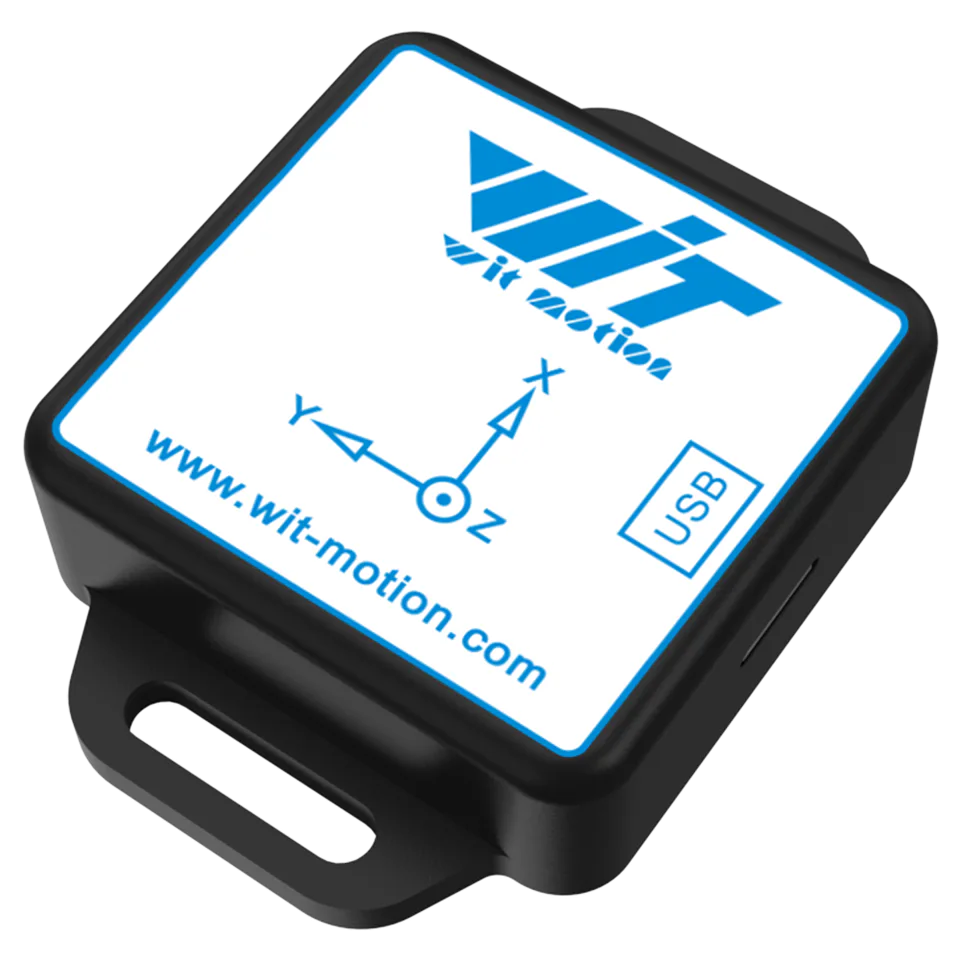

WitMotion WTVB01 Sensor
WitMotion

WitMotion WTVB01 Sensor

$25.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

WitMotion WTVB01 Sensor from WitMotion is a sensor designed for robotics teams that need dependable hardware. WitMotion WTVB01 Sensor specifications include BT50 of 485, Operating Temperature of -20°C ~ +60°C, and Storage Temperature of -40°C ~ +85°C. Integrators specify WitMotion WTVB01 Sensor when they need repeatable sensor performance in deployed systems

Delivery / Pickup Options
Order summaryUSD
Merchandise$25.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.19
Estimated total before tax$90.19

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

Battery 3.7V (Charging 5V)
Supply Voltage
0.1 kg
Net weight
260mAh
Battery Capacity

All Specifications

BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
BT50485
Operating Temperature-20°C ~ +60°C
Storage Temperature-40°C ~ +85°C
Shock Resistance—
Protection Class—
Weight18.2g
Operating Duration6 ~ 8 hours
Charging Duration2 ~ 3 hours
Output ContentDefault: 3‑axis vibration velocity, angle, displacement, frequency, temperature Real‑time: on‑chip time, 3‑axis accel, gyro, velocity, angle, displacement
Measurement RangeVelocity: 0~600mm/s Displacement: 0~30000µm Frequency: 5~100Hz Angle: 0~180°
Detection Period1Hz ~ 100Hz (default 100Hz)
Data Return Rate (Wireless Only)1Hz ~ 100Hz (default 10Hz)
Startup Time1000ms
Cascade Quantity (Wireless)4 units
Bluetooth Transmission Distance50m (Bluetooth 5.0, open area)
Accuracy—
Cutoff Frequency1Hz ~ 100Hz (default 10Hz)
